Specifications
Brand Name :
LIijiang Glass
Model Number :
LJBZ2535G
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 70000.00 -65000.00
Payment Terms :
L/C, T/T
Supply Ability :
50sets/month
Delivery Time :
45 days
Packaging Details :
Container/wooden box
Max glass size: :
2500*3500mm
Dimension(L*W*H) :
23500*3500*3700mm
Speed :
0.5-5 M/min
Description

Hot sale Automatic Insulating Glass Production Line with factory price

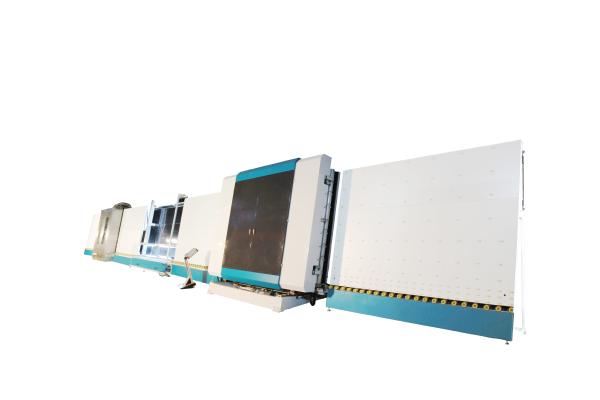

3mm-12mm Automatic Insulating Glass Production Line Film Removal , Cleaning

Introduction

The automatic warm edge production line produced by our company adopts new technology and new materials. It is a fully automatic insulating glass production line that integrates film removal, cleaning, winding, inflation, and glue. It abandons the traditional aluminum strip cutting of insulating glass. Bending, filling, butyl coating, adhesive glass, and other complicated procedures, so that the insulating glass can be processed in only one line, which greatly reduces labor and truly realizes automatic and efficient assembly line operations. The use of insulating glass combined with flexible warm edge spacers (FLEXIBLE WARM EDGE) and reactive hot melt adhesives (REACTIVE HOT MELT), which are popular in Europe and the United States, achieves uniform sealing and structural strength, plus a high concentration of inert gas, Its thermal insulation performance is greatly improved compared with traditional insulating glass.

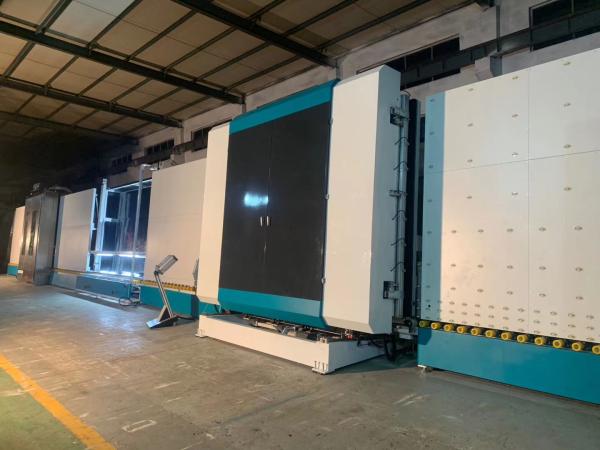

3mm-12mm Automatic Insulating Glass Production Line Film Removal , Cleaning
The Solution of Automatic Insulating Glass Processing Line
The operation process of the insulating glass production line includes cutting the original glass sheet and entering the hollow production line, which mainly undergoes cleaning, drying, making spacer frames, filling with desiccant, first sealing (application of butyl rubber), inspection, placing the frame, pressing, and first. Secondary sealing (polysulfide glue or silicone glue), unloading, etc.
3mm-12mm Automatic Insulating Glass Production Line Film Removal , Cleaning
Technical Data
Max. Glass Size
2500*3500mm
Min. Glass Size
300*450mm
Glass Thinkness
3-12mm
Insulating Glass Thinkness
40mm
Glass Washing Speed
2-10m/min
Glass Conveyor Speed
45m/min
Washing Brushes
3 pairs
Water Supply
Water consumption: 0.5 t/h conductivity
Air Supply
Flow 0.8m/min
Air Pressure
≥0.8Mpa
Total Power
3P 380V 50Hz 25Kw
Dimension
18500*3500*3600mm
3mm-12mm Automatic Insulating Glass Production Line Film Removal , Cleaning

Company Profile

JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.

The company adheres to the “Hi-Q products”. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.

At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.

LIJIANG GLASS are goes into a leading way in the DGU mechanical field with the advanced technology, first-class products, perfect service and good reputation!
