Automatic Rotating Insulating Glass Table For Silicone Sealants Sealing Machine
Automatic Rotating Insulating Glass Table For Silicone Sealants Sealing Machine
Automatic Rotating Insulating Glass Table For Silicone Sealants Sealing Machine
Automatic Rotating Insulating Glass Table For Silicone Sealants Sealing Machine
Specifications
Brand Name :
Lijiang
Model Number :
LJT0202
Certification :
CE
Place of Origin :
Jinan
MOQ :
1 SET
Price :
2000 USD/SET
Payment Terms :
L/C, T/T
Supply Ability :
20SETS/MONTH
Delivery Time :
10 days
Packaging Details :
plastic film
Name :
Automatic rotating Insulating glass Table
Max glass size :
2000*2000mm
Glass size :
3-15mm
Power :
0.37kw
Weight :
50kg
Application :
For sealing glass
Description

Big Rotating Table For Manual Sealing Pump Machine

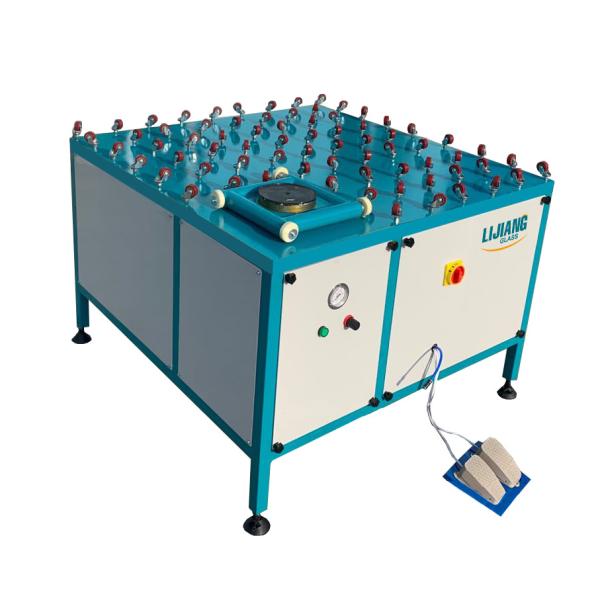

Introduction of the Rotating table machine

Rotating table is used to help coat the second sealants for insulating glass, used together with the manual sealing pump machine. It is a small manual machine with cheap price. There is a sucker in the middle of the machine to support the glass. and the wheels are used to rotate the glass when coating the four sides of the glazing glass. The pedal can be controlled the start and stop.

Main feature of the rotating table machine :

• Easy operating, simple and flexible

• It is used for fixing and rotating glass when manual coating the outside of IG glass

• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data

Power supply 380V 50Hz
Total power 0.37kw
Operating dimension 2000*2000mm
Warranty 1 year

Sealant-spreading Machine LJST02A

Main feature

• Imported motor system to improve equipment efficiency

• Sealant gun, stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data

Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm
