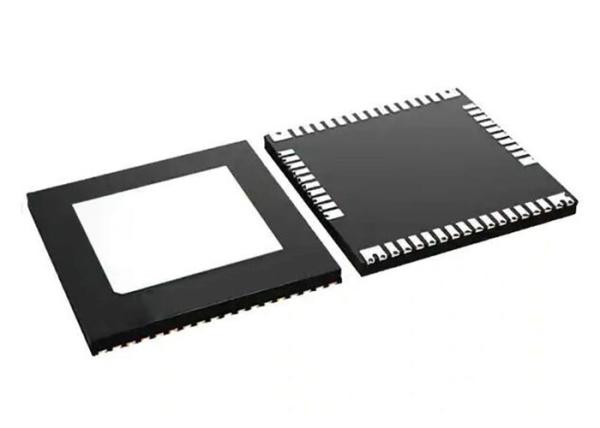

Integrated Circuit Chip LMG3522R030RQSR Low Side Full Half Bridge Drivers IC VQFN52

Product Description Of LMG3522R030RQSR

LMG3522R030RQSR GaN FET with integrated driver and protections is targeting switch-mode power converters and enables designers to achieve new levels of power density and efficiency.

Specification Of LMG3522R030RQSR

Feature Of LMG3522R030RQSR

• 650V GaN-on-Si FET with integrated gate driver
• Integrated high precision gate bias voltage
• 200V/ns FET hold-off
• 2MHz switching frequency
• 20V/ns to 150V/ns slew rate for optimization of switching performance and EMI mitigation
• Operates from 7.5V to 18V supply
• Robust protection
• Cycle-by-cycle overcurrent and latched short-circuit protection with < 100ns response
• Withstands 720V surge while hard-switching
• Self-protection from internal overtemperature and UVLO monitoring
• Advanced power management
• Digital temperature PWM output

Applications Of LMG3522R030RQSR

• Switch-mode power converters
• Merchant network and server PSU
• Merchant telecom rectifiers
• Solar inverters and industrial motor drives
• Uninterruptable power supplies

Simplified Block Diagram Of LMG3522R030RQSR
