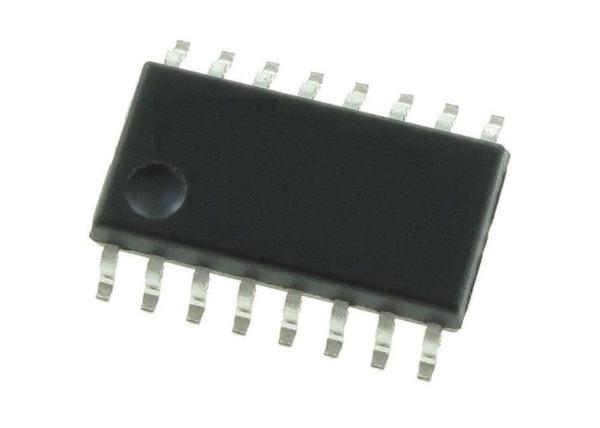

Integrated Circuit Chip VNH7100BASTR Automotive Fully Integrated H-bridge Motor Driver
Integrated Circuit Chip VNH7100BASTR Automotive Fully Integrated H-bridge Motor Driver
Specifications
Brand Name :
Original Factory
Model Number :
VNH7100BASTR
Certification :
Lead free / RoHS Compliant
Place of Origin :
CN
MOQ :
10
Price :
Contact for Sample
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
5-8 work days
Packaging Details :
16-SOIC
Part Number :
VNH7100BASTR
Product Status :
Active
Motor Type - AC, DC :
Brushed DC
Function :
Driver - Fully Integrated, Control and Power Stage
Output Configuration :
Half Bridge (2)
Interface :
PWM
Description

Integrated Circuit Chip VNH7100BASTR Automotive Fully Integrated H-bridge Motor Driver

Product Description Of VNH7100BASTR

VNH7100BASTR device is a full bridge motor driver intended for a wide range of automotive applications. The VNH7100BASTR device incorporates a dual monolithic high-side driver and two low-side switches.

Specification Of VNH7100BASTR

Part Number

VNH7100BASTR

Technology

Power MOSFET

Applications

Automotive

Current - Output

15A

Voltage - Supply

4V ~ 28V

Voltage - Load

4V ~ 28V

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

16-SOIC (0.154", 3.90mm Width)

Features Of VNH7100BASTR

  • Output current: 15 A

  • 3 V CMOS-compatible inputs

  • Undervoltage shutdown

  • Overvoltage clamp

  • Thermal shutdown

  • Cross-conduction protection

  • Current and power limitation

  • Very low standby power consumption

  • PWM operation up to 20 kHz

  • MultiSense diagnostic functions

  • Analog motor current feedback

  • Output short to ground detection

  • Thermal shutdown indication

  • OFF-state open-load detection

Other Electronic Components In Stock

Part Number

Package

QCC-3040-0-CSP90B-TR-01-0

BGA

QCC-3020-0-CSP90-TR-00-0

BGA

BES2300-YP

BGA

BTS4300SGA

SOP8

BTA204X-800C

TO220F

ISPPAC-POWR607-01SN32I

QFN
