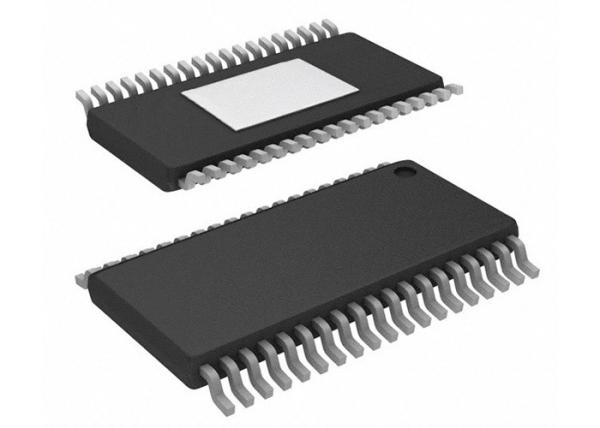

Power Management TPS43336QDAPRQ1 Step-Down DC-DC Controller IC 38-HTSSOP

Product Description Of TPS43336QDAPRQ1

TPS43336QDAPRQ1 include two current-mode synchronous buck controllers and a voltage-mode boost controller. TPS43336QDAPRQ1 devices are ideally suited as a pre-regulator stage with low Iq requirements and for applications that must survive supply drops due to cranking events.

Specification Of TPS43336QDAPRQ1

Features Of TPS43336QDAPRQ1

• Two Synchronous Buck Controllers
• One Pre-Boost Controller
• Input Range up to 40 V, (Transients up to 60 V),Operation Down to 2 V When Boost is Enabled
• Low-Power-Mode IQ: 30 µA (One Buck On), 35 µA(Two Bucks On)
• Low Shutdown Current Ish < 4 µA
• Buck Output Range 0.9 V to 11 V
• Boost Output Selectable: 7 V, 10 V, or 11 V
• Programmable Frequency and External Synchronization Range 150 kHz to 600 kHz
• Separate Enable Inputs (ENA, ENB)
• Frequency Spread Spectrum (TPS43336-Q1)
• Selectable Forced Continuous Mode or Automatic Low-Power Mode at Light Loads
• Sense Resistor or Inductor DCR Sensing
• Out-of-Phase Switching Between Buck Channels
• Peak Gate-Drive Current 0.7 A

Applications Of TPS43336QDAPRQ1

• Automotive Start-Stop, Infotainment, Navigation Instrument Cluster Systems

• Industrial and Automotive Multi-Rail DC Power Distribution Systems and Electronic Control Units
