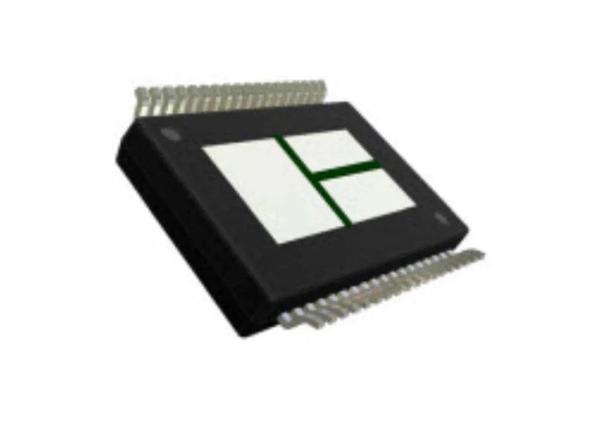

Automobile Chips VNH5019ATR-E Automotive fully integrated H-bridge motor driver

Product Description Of VNH5019ATR-E

The VNH5019ATR-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side drivers and two low-side switches.

Specification Of VNH5019ATR-E

Function

Driver - Fully Integrated, Control and Power Stage

Output Configuration

Half Bridge (2)

Interface

Parallel, PWM

Technology

Power MOSFET

Applications

Automotive

Current - Output

30A

Voltage - Supply

5.5V ~ 24V

Voltage - Load

5.5V ~ 24V

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Features Of VNH5019ATR-E

  • Output current: 30 A
  • 3 V CMOS compatible inputs
  • Undervoltage and overvoltage shutdown
  • High-side and low-side thermal shutdown
  • Cross-conduction protection
  • Current limitation
  • Very low standby power consumption
  • PWM operation up to 20 kHz
  • Protection against:
  • Loss of ground and loss of VCC
  • Current sense output proportional to motor current
  • Charge pump output for reverse polarity protection
  • Output protected against short to ground and short to VCC

Block diagram and pin description Of VNH5019ATR-E
