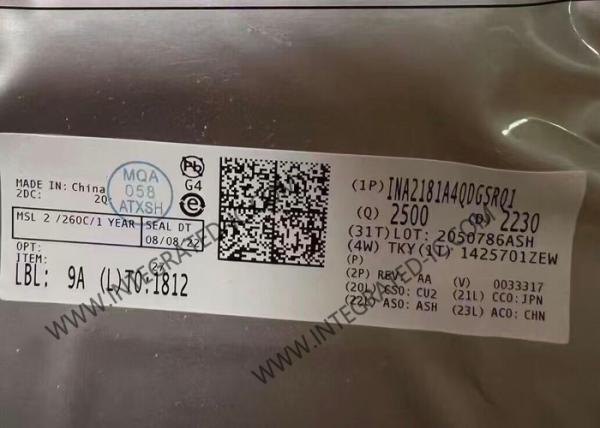

INA2181A4QDGSRQ1 Automotive Bidirectional Voltage Output Current-Sense Amplifiers
INA2181A4QDGSRQ1 Automotive Bidirectional Voltage Output Current-Sense Amplifiers
Specifications
Brand Name :
Original Factory
Model Number :
INA2181A4QDGSRQ1
Certification :
Lead free / RoHS Compliant
Place of Origin :
CN
MOQ :
10
Price :
Contact for Sample
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
5-8 work days
Packaging Details :
10-VSSOP
Part Number :
INA2181A4QDGSRQ1
GBP - Gain Bandwidth Product :
105 kHz
Vcm - Common Mode Voltage :
12 V
CMRR - Common Mode Rejection Ratio :
100 dB
Ib - Input Bias Current :
75 uA
Vos - Input Offset Voltage :
100 uV
Description

INA2181A4QDGSRQ1 Automotive Bidirectional Voltage Output Current-Sense Amplifiers

Product Description Of INA2181A4QDGSRQ1

The INA2181A4QDGSRQ1 current sense amplifiers are designed for cost-optimized applications. These devices are part of a family of bidirectional, current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from –0.2 V to +26 V,independent of the supply voltage.

Specification Of INA2181A4QDGSRQ1

Number of Circuits

2

Output Type

Rail-to-Rail

Slew Rate

2V/µs

Gain Bandwidth Product

105 kHz

-3db Bandwidth

105 kHz

Current - Input Bias

75 µA

Voltage - Input Offset

100 µV

Current - Supply

356µA

Voltage - Supply Span (Min)

2.7 V

Voltage - Supply Span (Max)

5.5 V

Operating Temperature

-40°C ~ 125°C (TA)

Applications Of INA2181A4QDGSRQ1

  • Motor control
  • Battery monitoring
  • Power management
  • Lighting control
  • Overcurrent detection

Typical Application Circuit Of INA2181A4QDGSRQ1

INA2181A4QDGSRQ1 Automotive Bidirectional Voltage Output Current-Sense Amplifiers

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
