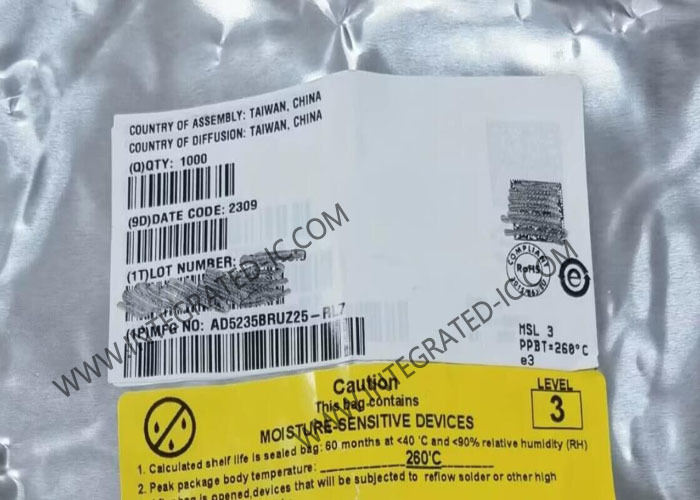

Nonvolatile Memory AD5235BRUZ25 Dual 1024-Position Digital Potentiometer

Product Description Of AD5235BRUZ25

The AD5235BRUZ25 is a dual-channel, nonvolatile memory,1 digitally controlled potentiometer2 with 1024-step resolution, offering guaranteed maximum low resistor tolerance error of ±8%.The device performs the same electronic adjustment function as a mechanical potentiometer with enhanced resolution, solid state reliability, and superior low temperature coefficient performance.

Specification Of AD5235BRUZ25

Features Of AD5235BRUZ25

• Dual-channel, 1024-position resolution

• 25 kΩ, 250 kΩ nominal resistance

• Maximum ±8% nominal resistor tolerance error

• Low temperature coefficient: 35 ppm/°C

• 2.7 V to 5 V single supply or ±2.5 V dual supply

• SPI-compatible serial interface

• Nonvolatile memory stores wiper settings

• Power-on refreshed with EEMEM settings

• Permanent memory write protection

• Resistance tolerance stored in EEMEM

• 26 bytes extra nonvolatile memory for user-defined information

• 1M programming cycles

• 100-year typical data retention

Applications Of AD5235BRUZ25

• DWDM laser diode driver, optical supervisory systems

• Mechanical potentiometer replacement

• Instrumentation: gain, offset adjustment

• Programmable voltage-to-current conversion

• Programmable filters, delays, time constants

• Programmable power supply

• Low resolution DAC replacement

• Sensor calibration

Bipolar Programmable Gain Amplifier Of AD5235BRUZ25
