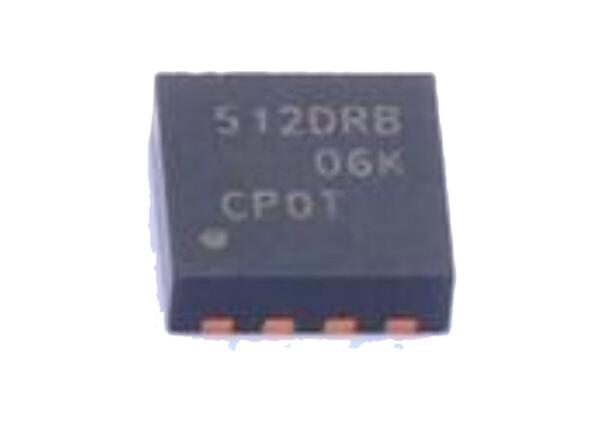

Automobile Chips TPS73512QDRBRQ1 Low Dropout Linear Regulator VDFN8 High PSRR​

Product Description Of TPS73512QDRBRQ1

TPS73512QDRBRQ1 low-dropout (LDO), lowpower linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 46 µA (typical) ground current.

Specification Of TPS73512QDRBRQ1

Features Of TPS73512QDRBRQ1

• Input voltage: 2.7 V to 6.5 V
• 500mA low-dropout regulator with EN
• Low IQ: 46 µA
• Fixed outputs of 1 V to 4.3 V
• Adjustable outputs from 1.25 V to 6 V
• High PSRR: 68 dB at 1 kHz
• Low noise: 13.2 µVRMS
• Fast startup time: 45 µs
• Stable with a low-ESR, 2-µF output capacitor
• Excellent load and line transient response
• 2% overall accuracy(load, line, temperature, VOUT > 2.2 V)
• Low dropout: 280 mV at 500 mA
• 3-mm × 3-mm VSON-8 packages

Applications Of TPS73512QDRBRQ1

• Automotive infotainment
• Navigation systems
• WiFi, WiMax modules
• Telematics systems
• Microprocessor power

Typical Application Of TPS73512QDRBRQ1
