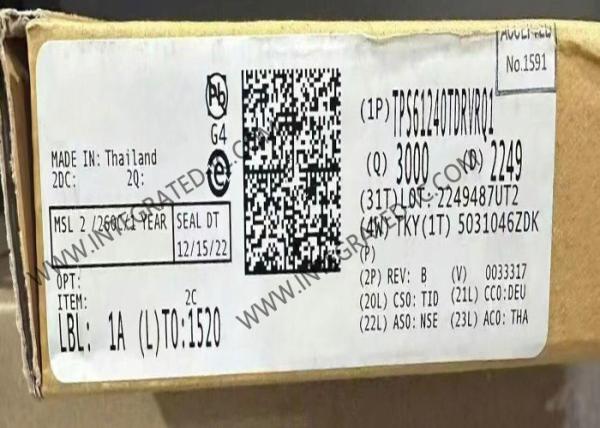

Automobile Chips TPS61240TDRVRQ1 3.5MHz High Efficiency Step-Up Converter

Product Description Of TPS61240TDRVRQ1

TPS61240TDRVRQ1 is a high efficient synchronous step up DC-DC converter optimized for products powered by either a three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-Polymer battery. The TPS61240TDRVRQ1 supports output currents up to 450mA. The TPS61240-Q1 has an input valley current limit of 500 mA.

Specification Of TPS61240TDRVRQ1

Features Of TPS61240TDRVRQ1

• Efficiency > 90% at nominal operating conditions

• Total DC Output Voltage Accuracy 5 V ±2%

• Typical 30-μA quiescent current

• Best in class line and load transient

• Wide VIN range from 2.3 V to 5.5 V

• Output current up to 450 mA

• Automatic PFM/PWM mode transition

• Low ripple power save mode for improved efficiency at light loads

• Internal soft start, 250 μs typical start-up time

• 3.5-MHz typical operating frequency

• Load disconnect during shutdown

• Current overload and thermal shutdown protection

• Only three surface-mount external components required (one MLCC inductor, two ceramic capacitors)

• Total solution size < 13 mm2

• Available in a 2 mm × 2 mm WSON package

Applications Of TPS61240TDRVRQ1

• Advanced driver assistance systems (ADAS)

• Front camera

• Surround view system ECU

• Radar and LIDAR

• Automotive infotainment and cluster

• Head unit

• HMI and display

• Body electronics and lighting

• Factory automation and control

Simplified Schematic Of TPS61240TDRVRQ1

Pin Configuration and Functions Of TPS61240TDRVRQ1
