IC Chip TPS7B6833QPWPRQ1 500mA 40V High Voltage Ultralow Quiescent Regulator IC ​

Product Description Of TPS7B6833QPWPRQ1

TPS7B6833QPWPRQ1 is a 500-mA watchdog LDO designed for an operating voltage up to 40 V, with typical quiescent current of only 19 µA at light load.
TPS7B6833QPWPRQ1 integrates a programmable function for selecting a window or standard watchdog, with an external resistor to set the watchdog time within 10% accuracy.

Specification Of TPS7B6833QPWPRQ1

Features Of TPS7B6833QPWPRQ1

• Maximum output current: 500 mA
• 4V to 40V wide VIN input-voltage range with up to 45V transients
• Fixed 3.3V and 5V outputs
• Maximum dropout voltage: 600 mV at 500 mA Configurable for window watchdog or standard watchdog
• Open-to-closed window ratio configurable as 1:1 or 8:1
• Fully adjustable watchdog period (from 10 ms to 500 ms)
• 10% accurate watchdog period
• Fully adjustable power-good threshold and powergood delay period
• Low Input-voltage tracking to UVLO

Applications Of TPS7B6833QPWPRQ1

• Automotive MCU power supply
• Body control modules (BCM)
• Body comfort modules
• EV and HEV battery management systems (BMS)
• Electronic gear shifter
• Transmission control unit (TCU)
• Electrical power steering (EPS)

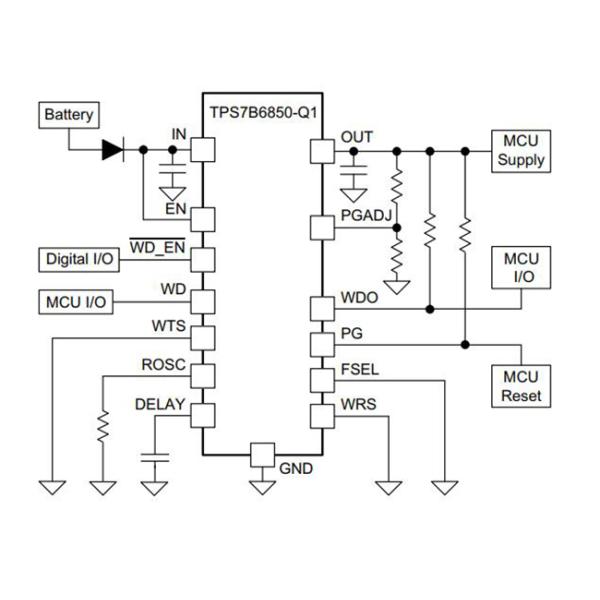

Typical Application Schematic Of TPS7B6833QPWPRQ1

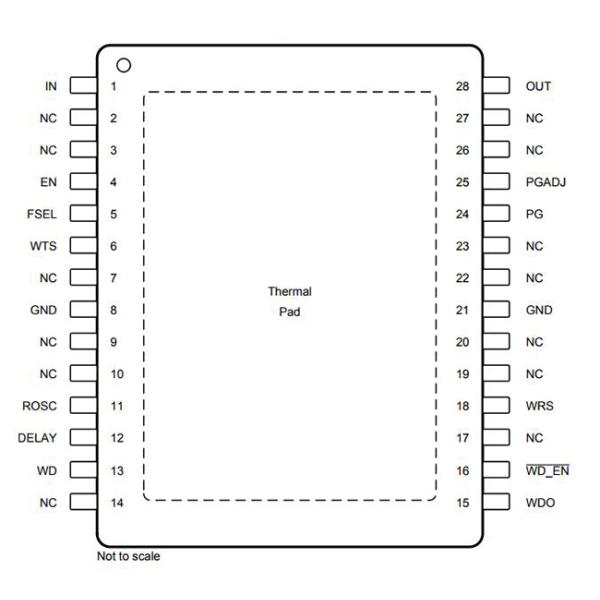

Pin Configuration​ Of TPS7B6833QPWPRQ1
