70mOhm Load Drivers IC RT9742FGJ5 High Side Power Switches With Flag TSOT-23-5​

Product Description Of RT9742FGJ5

RT9742FGJ5 is a cost-effective, low-voltage, single N-MOSFET high-side Power Switch IC for USB application. Low switch-on resistance and low supply current are realized in this IC.
RT9742FGJ5 integrates an over-current protection circuit, a short fold back circuit, a thermal shutdown circuit and an under-voltage lockout circuit for overall protection.
The RT9742FGJ5 is an ideal solution for USB power supply and can support flexible applications.

Specification Of RT9742FGJ5

Features Of RT9742FGJ5

• 70mΩ/55mΩ (typ.) N-MOSFET Switch
• Operating Range : 2.7V to 6V
• Reverse Blocking Current
• Under Voltage Lockout
• Deglitched Fault Report (FLG)
• Thermal Protection with Fold-back
• Over Current Protection
• Short Circuit Protection

Applications Of RT9742FGJ5

• USB Peripherals
• Notebook PCs

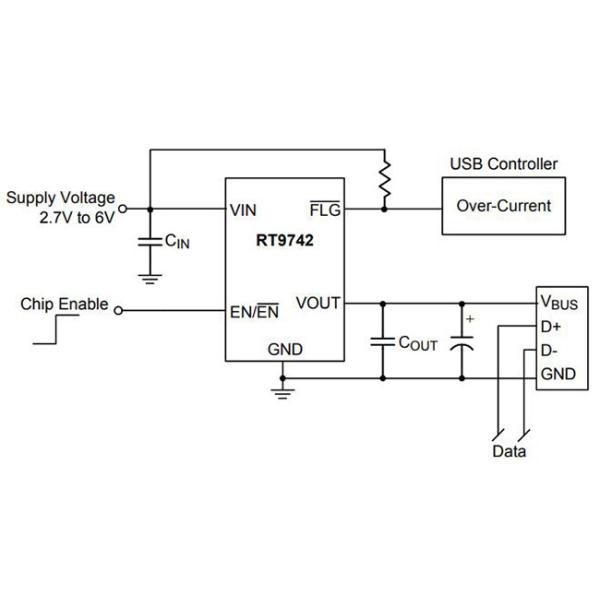

Simplified Application Circuit Of RT9742FGJ5

Pin Configuration Of RT9742FGJ5
