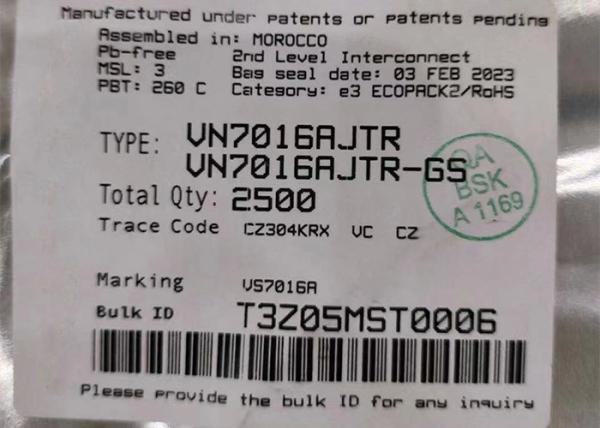

Integrated Circuit Chip VN7016AJTR High Side Driver IC PowerSSO16 Single Channel
Integrated Circuit Chip VN7016AJTR High Side Driver IC PowerSSO16 Single Channel
Specifications
Brand Name :
Original Factory
Model Number :
VN7016AJTR
Certification :
Lead free / RoHS Compliant
Place of Origin :
CN
MOQ :
10
Price :
Contact for Sample
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
5-8 work days
Packaging Details :
PowerSSO-16
Part Number :
VN7016AJTR
Compatible CMOS outputs :
3 V and 5 V
Current - Output (Max) :
55A
Rds On (Typ) :
16mOhm
Mounting Type :
Surface Mount
Operating Temperature :
-40°C ~ 150°C (TJ)
Description

Integrated Circuit Chip VN7016AJTR High Side Driver IC PowerSSO16 Single Channel​

Product Description Of VN7016AJTR

VN7016AJTR is a single channel high-side driver manufactured using VIPower® M0-7 technology and housed in PowerSSO-16 package.
VN7016AJTR is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics.

Specification Of VN7016AJTR

Part Number VN7016AJTR
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
4V ~ 28V
Voltage - Supply (Vcc/Vdd)
Not Required

Features Of VN7016AJTR

  • Single channel smart high-side driver with MultiSense analog feedback
  • Very low standby current
  • Compatible with 3 V and 5 V CMOS outputs
  • Undervoltage shutdown
  • Overvoltage clamp
  • Load current limitation
  • Self limiting of fast thermal transients
  • Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin

Other Supply Product Types

Part Number Package
STM32L052C6T6 LQFP-48
STM32F072CBT7 LQFP-48
STM32F405OEY6 WLCSP-90
STM32H723VEH6 TFBGA-100
STM32H723VET6 LQFP-100
STM32H723ZET6 LQFP-144
STMPE801QTR QFN16
STLC2500CTR WFBGA48
STM32H725VGT6 LQFP-100
STM32L071K8U6 UFQFN-32
STM32L071C8T7 LQFP-48
STM32L071C8U6 UFQFPN-48
STM32L071KBU3 UFQFN-32
STM32L071KZU6 UFQFPN-32
STM32L071CBY6 WLCSP-49
STM32L071KZT6 LQFP-32
STM32L071RZH6 TFBGA-64
STM32L071RBT6 LQFP-64
STM32L071C8T6 LQFP-48
STM32H723VET6 LQFP100
STM32L072CZY6 WLCSP-49
STM32G031K8U6TR UFQFN-32
STM32F072R8T7 LQFP-64
VN7016AJTR PowerSSO-16
STM32L4P5ZET6 LQFP100
STM32L4P5ZGT6 LQFP144
STM32L4Q5AGI6 UFBGA-169
STM32L4Q5CGU6 UFQFN48
STM32L4Q5QGI6 UFBGA132
STM32L4Q5RGT6 LQFP64

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
