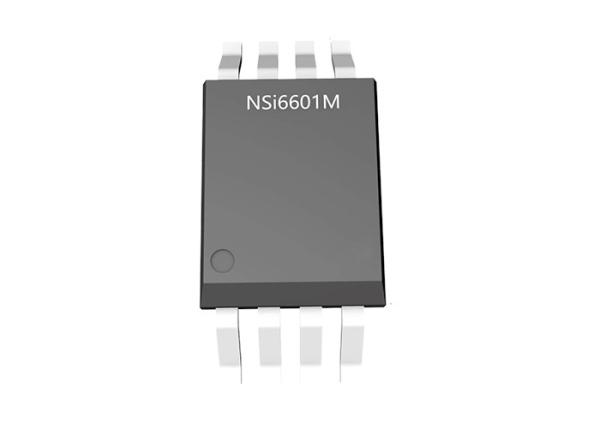

Single Channel NSI6601MC-DSPR Isolated Gate Driver IC SOP8 Integrated Circuit Chip​

Product Description Of NSI6601MC-DSPR

NSI6601MC-DSPR is a single-channel isolation gate driver suitable for driving IGBT, power MOSFET and SiC MOSFET in many applications. Separate outputs are provided to control the rising and falling duration respectively.
NSI6601MC-DSPR can provide peak source/sink current of 5A/5A, and Miller clamp to prevent mis-conduction at high di/dt. The minimum 150kV/μs common mode transient immunity (CMTI) ensures the robustness of the system.

Specification Of NSI6601MC-DSPR

Features Of NSI6601MC-DSPR

• Single-channel isolated driver
• Input side supply voltage: 3.1V to 17V
• Driver side power supply voltage: up to 32V, with both 9V and 13V UVLO options
• Version M supports Miller Clamp function (NSi6601M) with current up to 5A
• Peak source/sink current of 5A/5A
• High CMTI: 150kV / μs
• Typical propagation delay: 78ns
• Operation ambient temperature: -40℃~125℃

Applications Of NSI6601MC-DSPR

• Isolated DC/DC and AC/DC power supplies
• High-voltage PFC
• PV inverter
• Motor driver and electric vehicle charging
• UPS and battery charger
