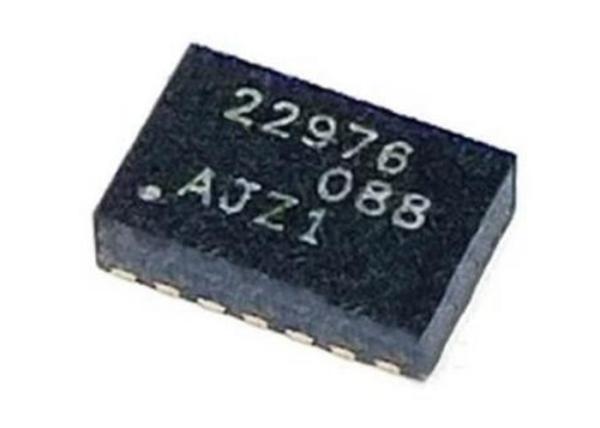

Dual Channel TPS22976DPUR 6A Load Drivers Chip 14WSON Integrated Circuit Chip
Dual Channel TPS22976DPUR 6A Load Drivers Chip 14WSON Integrated Circuit Chip
Specifications
Brand Name :
Original Factory
Model Number :
TPS22976DPUR
Certification :
Lead free / RoHS Compliant
Place of Origin :
CN
MOQ :
10
Price :
Contact for Sample
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
5-8 work days
Packaging Details :
14-WSON (3x2)
Part Number :
TPS22976DPUR
Input voltage range :
0.6 V to VBIAS
VBIAS voltage range :
2.5 V to 5.7 V
Current - Output (Max) :
6A
Rds On (Typ) :
14mOhm
Operating Temperature :
-40°C ~ 105°C (TA)
Description

Dual Channel TPS22976DPUR 6A Load Drivers Chip 14WSON Integrated Circuit Chip​

Product Description Of TPS22976DPUR

TPS22976DPUR is a dual-channel load switch with controlled turnon.

TPS22976DPUR contains two N-channel MOSFETs that can operate over an input voltage range of 0.6 V to 5.7 V, and can support a maximum continuous current of 6 A per channel.

Specification Of TPS22976DPUR

Part Number TPS22976DPUR
Switch Type
General Purpose
Number of Outputs
2
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
2.5V ~ 5.7V

Features Of Integrated Circuit Chip​

  • Integrated dual-channel load switch
  • Input voltage range: 0.6 V to VBIAS
  • VBIAS voltage range: 2.5 V to 5.7 V
  • 6A maximum continuous switch current per channel
  • Control input threshold enables use of 1.2V, 1.8V, 2.5V, and 3.3V logic
  • Configurable rise time

Application Circuit Of TPS22976DPUR

Dual Channel TPS22976DPUR 6A Load Drivers Chip 14WSON Integrated Circuit Chip

Other Electronic Components In Stock

Part Number Package
IPW65R099CFD7A TO-247-3
IAUC40N08S5L140 TSDSON-8
IPP65R050CFD7A PG-TO220-3
IAUT150N10S5N035 H-PSOF-8-1
IPBE65R190CFD7A TO-263-7
IPP65R190CFD7A TO-220

FAQ

Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
