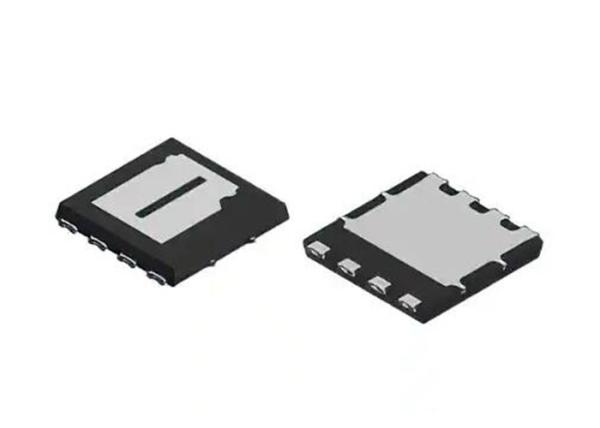

Integrated Circuit Chip FDMT80060DC N Channel Transistors 8-PowerVDFN Transistors
Integrated Circuit Chip FDMT80060DC N Channel Transistors 8-PowerVDFN Transistors
Specifications
Brand Name :
Original Factory
Model Number :
FDMT80060DC
Certification :
Lead free / RoHS Compliant
Place of Origin :
CN
MOQ :
10
Price :
Contact for Sample
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
5-8 work days
Packaging Details :
8-PowerVDFN
Part Number :
FDMT80060DC
Input Capacitance (Ciss) (Max) @ Vds :
20170 pF @ 30 V
Power Dissipation (Max) :
3.2W (Ta), 156W (Tc)
Operating Temperature :
-55°C ~ 150°C (TJ)
Mounting Type :
Surface Mount
Supplier Device Package :
8-Dual Cool™88
Description

Integrated Circuit Chip FDMT80060DC N Channel Transistors 8-PowerVDFN Transistors​


Product Description Of FDMT80060DC

FDMT80060DC N−Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process. Advancements in both silicon and DUAL COOL package technologies have been combined to offer the lowest rDS(on) while maintaining excellent switching performance by extremely low Junction−to−Ambient thermal resistance.


Specification Of FDMT80060DC

Part Number FDMT80060DC
FET Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
60 V
Current - Continuous Drain (Id) @ 25°C
43A (Ta), 292A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
8V, 10V
Rds On (Max) @ Id, Vgs
1.1mOhm @ 43A, 10V
Vgs(th) (Max) @ Id
4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
238 nC @ 10 V

Features Of Transistors

  • Max rDS(on) = 1.1 m at VGS = 10 V, ID = 43 A
  • Max rDS(on) = 1.3 m at VGS = 8 V, ID = 37 A
  • Advanced Package and Silicon Combination for Low rDS(on) and High Efficiency
  • Next Generation Enhanced Body Diode Technology, Engineered for Soft Recovery
  • Low Profile 8x8 mm MLP Package
  • MSL1 Robust Package Design

Other Electronic Components In Stock

Part Number Package
AK8858VQ QFP
AL260C-HS-PBF QFP
AKKU2110BX SSOP
AM2321P SOT23-3
AM20N10-250D TO-252
AM4961GH-G1 HTSSOP-14


FAQ
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q: Which Certificates do you have?
A: We are ISO 9001:2015 Certified Company and member of ERAI.
Q: Can you support small quantity order or sample?Is the sample free?
A: Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q: How to ship my order? Is it safe?
A: We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q: What about the lead time?
A: We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
