AMC23C12QDWVRQ1 Analog Comparators with Adjustable Threshold and Latch Function

Product Description Of AMC23C12QDWVRQ1

The AMC23C12QDWVRQ1 is an isolated window comparator with a short response time. The open-drain output is separated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 5 kVRMS according to VDE 0884-17 and UL1577, and supports a working voltage of up to 1 kVPK.
The AMC23C12QDWVRQ1 is available in an 8-pin, widebody SOIC package and is specified over the full automotive temperature range of –40°C to +125°C.

Specification Of AMC23C12QDWVRQ1

Features Of AMC23C12QDWVRQ1

• AEC-Q100 qualified for automotive applications:
• Temperature grade 1: –40°C to +125°C, TA
• Wide high-side supply range: 3 V to 25 V
• Low-side supply range: 2.7 V to 5.5 V
• Adjustable threshold:
• Window-comparator mode: ±20 mV to ±300 mV
• Positive-comparator mode: 600 mV to 2.7 V
• Reference for threshold adjustment: 100 μA, ±2%
• Trip threshold error: ±1% (max) at 250 mV
• Open-drain output with optional latch mode
• Propagation delay: 280 ns (typ)
• High CMTI: 55 V/ns (min)

Applications Of AMC23C12QDWVRQ1

Overcurrent or overvoltage detection in:
HEV/EV charging piles
HEV/EV onboard chargers (OBC)
HEV/EV DC/DC converters
HEV/EV traction inverters

Typical Application Of AMC23C12QDWVRQ1

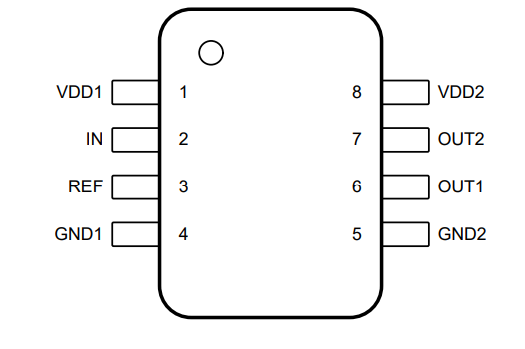

Pin Configuration and Functions Of AMC23C12QDWVRQ1
