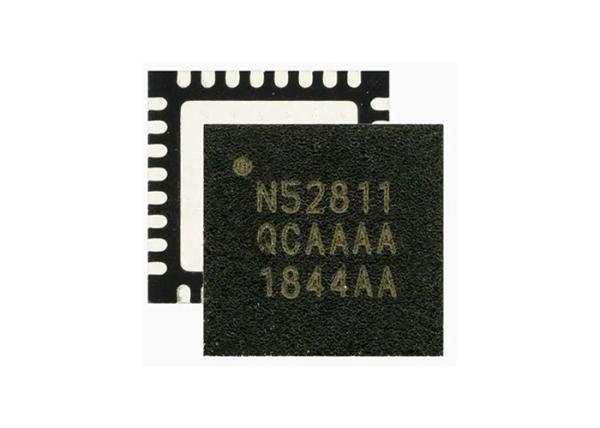

NRF52811-QCAA-R BT Low Energy , BT 5.3 SoC Supporting NRF52811 QFN32

Product Description

NRF52811-QCAA-R is built around a 64 MHz Arm® Cortex™-M4 CPU, and has a range of digital peripherals and interfaces such as PDM, PWM, UART, SPI and TWI. It also has a capable 12-bit ADC. Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.

Specification Of NRF52811-QCAA-R

Features

• BT 5.1, IEEE 802.15.4-2006, 2.4 GHz transceiver
• -97 dBm sensitivity in 1 Mbps BT low energy mode
• -104 dBm sensitivity in 125 kbps BT low energy mode (long range)
• -20 to +4 dBm TX power, configurable in 4 dB steps
• On-air compatible with nRF52, nRF51, nRF24L, and nRF24AP Series
• Supported data rates:
• BT 5.1: 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
• IEEE 802.15.4-2006: 250 kbps
• Proprietary 2.4 GHz: 2 Mbps, 1 Mbps
• Angle-of-arrival (AoA) and angle-of-departure (AoD) direction finding using BT.
• Single-ended antenna output (on-chip balun)
• 4.6 mA peak current in TX (0 dBm)
• 4.6 mA peak current in RX
• RSSI (1 dB resolution)
• ARM®Cortex®-M4 32-bit processor, 64 MHz
• 144 EEMBC CoreMark® score running from flash memory
• 34.4 µA/MHz running CoreMark from flash memory
• 32.8 µA/MHz running CoreMark from RAM memory
• Serial wire debug (SWD)

Applications

• Computer peripherals and I/O devices
• Mouse
• Keyboard
• Mobile HID
• CE remote controls
