IoT Chip RTL8721DM Ameba D Series Dual Band WIFI BLE 5.0 IOT Low Energy SOC with High Security

General Description
RTL8721DM is a highly integrated single chip with a low-power-consumption mechanism ideal for IoT (Internet of Things) applications. It combines a Real-M300 CPU (up to 200MHz), Real-M200 CPU (20MHz)Wi-Fi, Bluetooth, Wireless MAC/Baseband/RF, audio codec features, and configurable GPIOs that can function as digital peripherals for various product applications and control usage. The RTL8721DM’s embedded memory configuration enables simpler and faster application development.

Description

Features

CPU:

Real-M300 @ 200MHz
Real-M200 @ 20MHz

Memory:

4.5MB embedded SRAM
XIP (eXecute In Place)
Provides external Flash interface

Wi-Fi:
802.11 a/b/g/n 1x1, 2.4GHz & 5GHz up to 150Mbps (PHY rate)

BLE:
BLE5.0 (PHY, LL, L2CAP, SM, ATT, GAP, GATT)
Supports both central and peripheral modes
High power mode (8dbm, shares the same PA with Wi-Fi)

Security:
Hardware Engine
Trustzone-M
Secure Boot
SWD Protection
Wi-Fi WEP, WPA, WPA2, WPS
Security engine: MD5, SHA-1, SHA2-256, DES, 3DES, AES

Peripheral Interface:
USB 2.0
UART x4
SPI interface x3
I2C interface x 2
PWM x17
Cap Touch
IR
Audio ADC
RTC
Maximum 16 GPIOs
Key Scan

Package:
Type: QFN68
Size: 8x8

Applications
Smart Home
Smart Appliance
Smart Building
Retail Applications
Health Care Applications
Wi-Fi-enabled Toys
Audio Applications

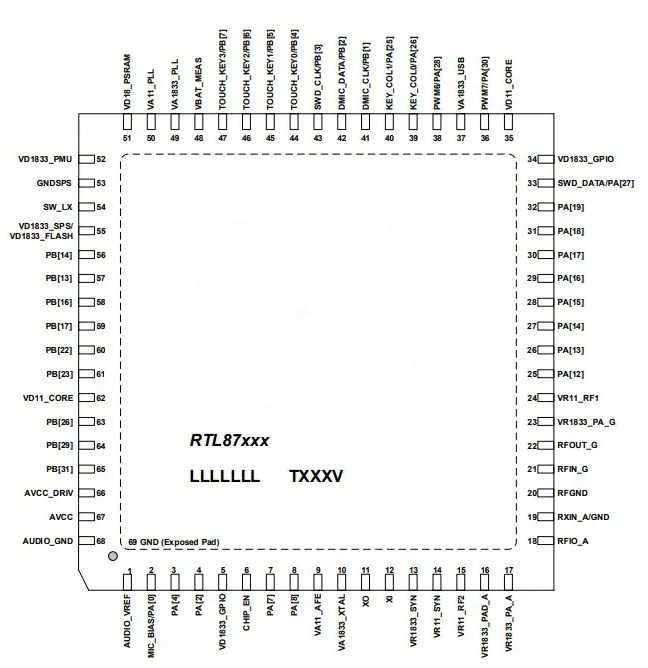

QFN68 pin assignment for RTL8721DM
