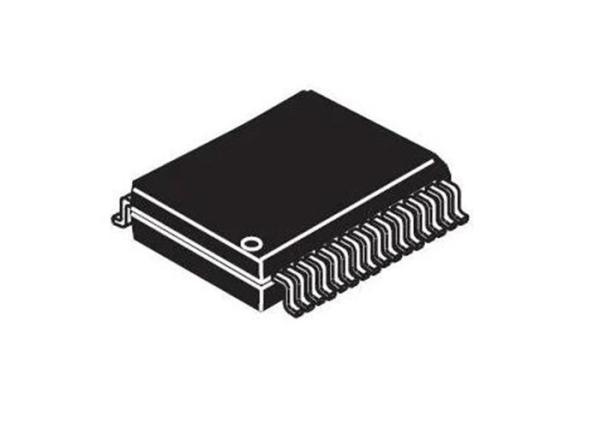

Power Management IC MCZ33905DS5EK PMIC System Basis Chip MCZ33905 SSOP32

Product Description
MCZ33905DS5EK is the second generation family of the System Basis Chip (SBC). It combines several features and enhances present module designs.
MCZ33905DS5EK works as an advanced power management unit for the MCU with additional integrated circuits such as sensors and CAN transceivers. It has a built-in enhanced high-speed CAN interface (ISO11898-2 and -5) with local and bus failure diagnostics, protection, and fail-safe operation modes. The SBC may include zero, one or two LIN 2.1 interfaces with LIN output pin switches.

Specification Of MCZ33905DS5EK

Features

• Voltage regulator for MCU, 5.0 or 3.3 V, part number selectable, with possibility of usage external PNP to extend current capability and share power dissipation
• Voltage, current, and temperature protection
• Extremely low quiescent current in LP modes
• Fully-protected embedded 5.0 V regulator for the CAN driver
• Multiple undervoltage detections to address various MCU specifications and system operation modes (i.e. cranking)
• Auxiliary 5.0 or 3.3 V SPI configurable regulator, for additional ICs, with overcurrent detection and undervoltage protection

Applications

• Aircraft and marine systems
• Automotive and robotic systems
• Farm equipment
• Industrial actuator controls

Simplified Application Diagram
