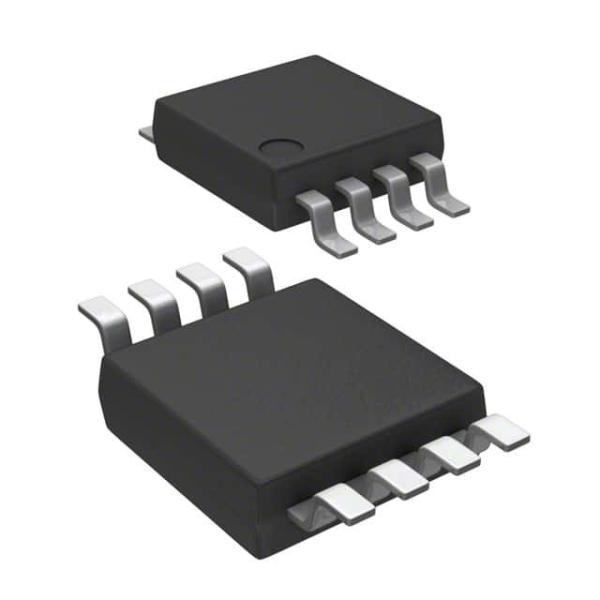

MAX8860EUA33+T IC REG LIN POS ADJ 300MA 8UMAX Analog Devices Inc./Maxim Integrated
MAX8860EUA33+T IC REG LIN POS ADJ 300MA 8UMAX Analog Devices Inc./Maxim Integrated
Specifications
Brand Name :
Analog Devices Inc./Maxim Integrated
Model Number :
MAX8860EUA33+T
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Output Configuration :
Positive
Output Type :
Adjustable (Fixed)
Number of Regulators :
1
Voltage - Input (Max) :
6.5V
Voltage - Output (Min/Fixed) :
1.25V (3.3V)
Voltage - Output (Max) :
6.5V
Voltage Dropout (Max) :
0.155V @ 300mA (Typ)
Current - Output :
300mA
Current - Quiescent (Iq) :
270 µA
Current - Supply (Max) :
-
PSRR :
-
Control Features :
Enable, Fault Output
Protection Features :
Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature :
-40°C ~ 85°C
Mounting Type :
Surface Mount
Package / Case :
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package :
8-uMAX/uSOP
Description

Product Details

General Description

The MAX8860 low-noise, low-dropout linear regulator operates from a 2.5V to 6.5V input and is guaranteed to deliver 300mA. Typical output noise for this device is 60µVRMS, and typical dropout is 105mV at 200mA. In addition to the six available preset output voltages (1.8V, 2.5V, 2.77V, 2.82V, 3V, and 3.3V), the Dual Mode™ feature allows the device to be configured as an adjustable output regulator from 1.25V to 6.5V.
Designed with an internal P-channel MOSFET pass transistor, the MAX8860 has a low 120µA supply current. An output fault-detection circuit indicates loss of regulation. Other features include a 10nA, logic-controlled shutdown mode, short-circuit and thermal-shutdown protection, and reverse battery protection. The MAX8860 is available in a miniature 8-pin µMAX package.

Features

♦ High Output Current (300mA)
♦ Low Output Voltage Noise: 60µVRMS
♦ Low 105mV Dropout at 200mA Output
♦ Low 120µA No-Load Supply Current
♦ Thermal Overload and Short-Circuit Protection
♦ Reverse Battery Protection
♦ 10nA Logic-Controlled Shutdown
♦ FAULT Indicator
♦ Small, Space-Saving µMAX Package
(1.1mm max height)
♦ Small 2.2µF Output Capacitor
Saves Space and Cost

Applications

Wireless Handsets
DSP Core Power
PCMCIA Cards
Hand-Held Instruments
Palmtop Computers
Electronic Planners

Specifications

Attribute Attribute Value
Manufacturer Maxim Integrated
Product Category Linear Voltage Regulators
Series MAX8860
Packaging Alternate Packaging
Mounting-Style SMD/SMT
Package-Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Operating-Temperature -40°C ~ 85°C
Mounting-Type Surface Mount
Output-Type Fixed
Supplier-Device-Package 8-uMAX
Voltage-Input 2.5 V ~ 6.5 V
Number-of-Outputs 1 Output
Current-Output 300mA
Voltage-Output 3.3V, 1.25 V ~ 6.5 V
Regulator-Topology Positive Fixed or Adjustable
Voltage-Dropout-Typical 0.155V @ 300mA
Number-of-Regulators 1 Regulator
Current-Limit-Min 330mA
Pd-Power-Dissipation 0.33 W
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Output-Voltage 3.3 V
Input-Voltage-MAX 6.5 V
Output-Current 300 mA
Input-Voltage-MIN + 2.5 V
Load-Regulation 0 %
Voltage-Regulation-Accuracy 1.4 %
Part-#-Aliases MAX8860
Package-Case UMAX-8
Dropout-Voltage 0.0006 V at 1 mA
Dropout-Voltage-Max 220 mV at 200 mA
Line-Regulation 0.1 %

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part# Description Manufacturer Compare
ADP7104ARDZ-2.5-R7
Power Circuits		 20 V, 500 mA, Low Noise, CMOS LDO Analog Devices Inc MAX8860EUA33+T vs ADP7104ARDZ-2.5-R7
LP3982IMM-3.0/NOPB
Power Circuits		 Micropower, Ultra-Low-Dropout, Low-Noise, 300-mA CMOS Regulator 8-VSSOP -40 to 85 Texas Instruments MAX8860EUA33+T vs LP3982IMM-3.0/NOPB
ADP7104ARDZ-3.0-R7
Power Circuits		 20 V, 500 mA, Low Noise, CMOS LDO Analog Devices Inc MAX8860EUA33+T vs ADP7104ARDZ-3.0-R7
LP3982IMMX-1.8/NOPB
Power Circuits		 Micropower, Ultra-Low-Dropout, Low-Noise, 300-mA CMOS Regulator 8-VSSOP -40 to 85 Texas Instruments MAX8860EUA33+T vs LP3982IMMX-1.8/NOPB
LP3982IMMX-2.82/NOPB
Power Circuits		 Micropower, Ultra-Low-Dropout, Low-Noise, 300-mA CMOS Regulator 8-VSSOP -40 to 85 Texas Instruments MAX8860EUA33+T vs LP3982IMMX-2.82/NOPB
ADP3333ARMZ-3.3-R7
Power Circuits		 High Accuracy Ultralow IQ, 300 mA, anyCAPR Low Dropout Regulator Analog Devices Inc MAX8860EUA33+T vs ADP3333ARMZ-3.3-R7
LP3982IMM-3.3/NOPB
Power Circuits		 Micropower, Ultra-Low-Dropout, Low-Noise, 300-mA CMOS Regulator 8-VSSOP -40 to 85 Texas Instruments MAX8860EUA33+T vs LP3982IMM-3.3/NOPB
LP3982IMM-1.8/NOPB
Power Circuits		 Micropower, Ultra-Low-Dropout, Low-Noise, 300-mA CMOS Regulator 8-VSSOP -40 to 85 Texas Instruments MAX8860EUA33+T vs LP3982IMM-1.8/NOPB
LP3982IMM-2.5/NOPB
Power Circuits		 Micropower, Ultra-Low-Dropout, Low-Noise, 300-mA CMOS Regulator 8-VSSOP -40 to 85 Texas Instruments MAX8860EUA33+T vs LP3982IMM-2.5/NOPB
ADP3333ARMZ-5-R7
Power Circuits		 High Accuracy Ultralow IQ, 300 mA, anyCAPR Low Dropout Regulator Analog Devices Inc MAX8860EUA33+T vs ADP3333ARMZ-5-R7

Descriptions

Linear Voltage Regulator IC Positive Fixed or Adjustable 1 Output 3.3V, 1.25 V ~ 6.5 V 300mA 8-uMAX
LDO Voltage Regulators 300mA Linear Regulator
