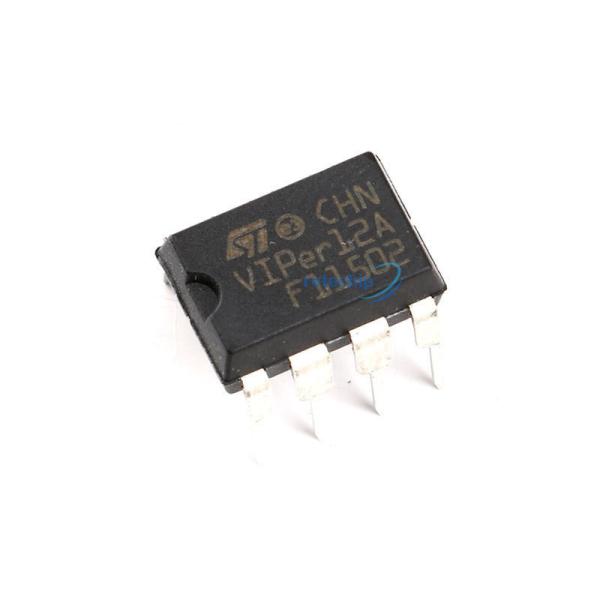

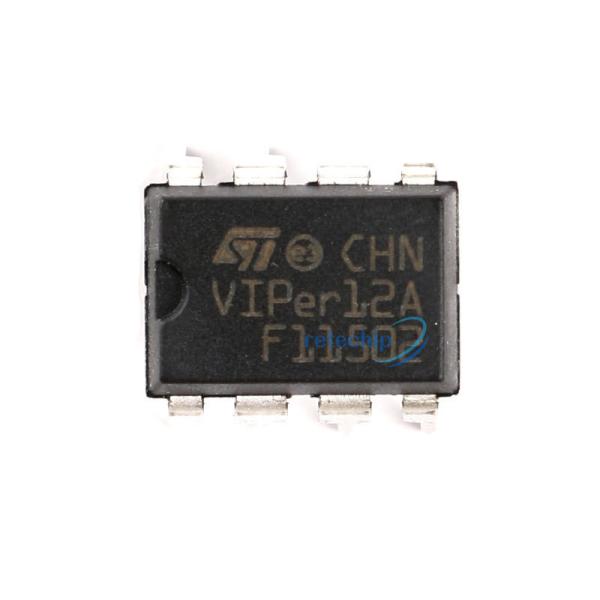

VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC
VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC
VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC
VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC
VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC
VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC
Specifications
Brand Name :
STM
Model Number :
VIPER12ADIP-E
Place of Origin :
Original
MOQ :
10 pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
35000 pcs Per Mouth
Delivery Time :
3-5 work days
Packaging Details :
2000 Pcs / Tray
Product Category :
AC/DC Converter
Description :
Low Power OFF-Line SMPS Primary
Packaging :
Tube
Warranty :
6 months
Shipping by :
DHL\UPS\Fedex\EMS\HK Post\TNT
Mounting Styleissipation :
Through Hole
Description

VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF-Line SMPS Primary 60 KHz PMIC

Specifications

Product Attribute Attribute Value
STMicroelectronics
Product Category: AC/DC Converters
DIP-8
730 V
8 W
9 V
38 V
60 kHz
16 %
4.5 mA
- 40 C
+ 150 C
Number of Outputs: 1 Output
Product Type: AC/DC Converters
Subcategory: PMIC - Power Management ICs
Unit Weight: 0.032805 oz

Description

The VIPER12A combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip. Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc. The internal control circuit offers the following benefits: Large input voltage range on the VDD pin accommodates changes in auxiliary supply voltage (This feature is well adapted to battery charger adapter configurations), automatic burst mode in low load condition and overvoltage protection in HICCUP mode.

VIPER12ADIP-E Integrated Circuit IC Chip Low Power OFF Line SMPS Primary 60KHz PMIC

Features

■ Fixed 60 kHz switching frequency

■ 9 V to 38 V wide range VDD voltage

■ Current mode control

■ Auxiliary undervoltage lockout with hysteresis

■ High voltage start-up current source

■ Overtemperature, overcurrent and overvoltage protection with auto-restart

■ Typical power capability – European (195 - 265 Vac) 8 W for SO-8, 13 W for DIP-8 – European (85 - 265 Vac) 5 W for SO-8, 8 W for DIP-8
