Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25
Specifications
Brand Name :
TOSHIBA
Model Number :
TB6600HG
Place of Origin :
Original
MOQ :
20 pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
51000pcs Per Mouth
Delivery Time :
3-5 work days
Packaging Details :
510 Pcs / Tray
Product Category :
Motor / Motion / Ignition Controllers & Drivers
Description :
Drivers Stepping Motor Driver IC
Packaging :
Tube
Warranty :
6 months
Shipping by :
DHL\UPS\Fedex\EMS\HK Post\TNT
Subcategory :
PMIC - Power Management IC
Description

Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25

Specifications

Product Attribute Attribute Value
Toshiba
Product Category: Motor / Motion / Ignition Controllers & Drivers
Stepper Motor Controllers / Drivers
2 Phase
8 V to 42 V
4 A
4.2 mA
- 30 C
+ 85 C
Through Hole
HZIP-25
Tray
Number of Outputs: 2 Output
Pd - Power Dissipation: 40 W

Description

The TB6600HG is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver. Forward and reverse rotation control is available with 2-phase, 1-2-phase, W1-2-phase, 2W1-2-phase, and 4W1-2-phase excitation modes. 2-phase bipolar-type stepping motor can be driven by only clock signal with low vibration and high efficiency

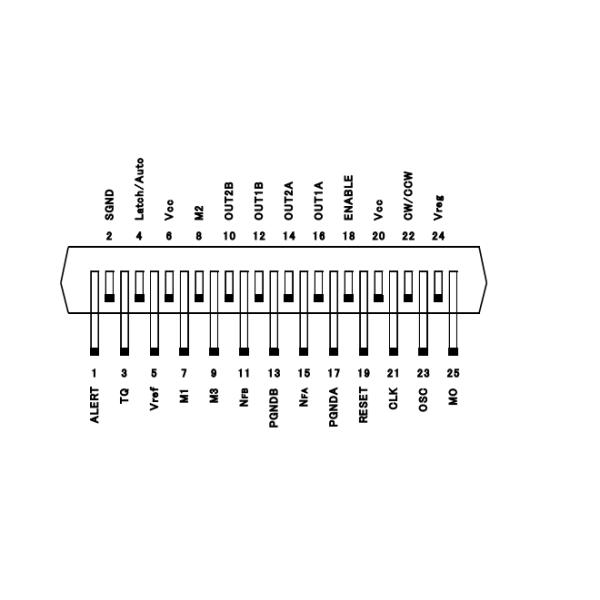

Stepper Motor Controller IC TB6600HG 8V to 42V Motor Controllers Driver IC Chip HZIP-25

Features

• Single-chip bipolar sinusoidal micro-step stepping motor driver

• Ron (upper + lower) = 0.4 Ω (typ.)

• Forward and reverse rotation control available

• Selectable phase drive (1/1, 1/2, 1/4, 1/8, and 1/16 step)

• Output withstand voltage: Vcc = 50 V

• Output current: IOUT = 5.0 A (absolute maximum ratings, peak) IOUT = 4.5 A (operating range, maximal value)

• Packages: HZIP25-P-1.00F

• Built-in input pull-down resistance: 100 kΩ (typ.), (only TQ terminal: 70ｋΩ(typ.))

• Output monitor pins (ALERT): Maximum of IALERT = 1 mA

• Output monitor pins (MO): Maximum of IMO = 1 mA

• Equipped with reset and enable pins

• Stand by function

• Single power supply

• Built-in thermal shutdown (TSD) circuit

• Built-in under voltage lock out (UVLO) circuit

• Built-in over-current detection (ISD) circuit
