ISO7760FDBQ Digital Isolator IC Solar Inverters EMC Six-Channel 3000 Vrms High Speed

High-speed, robust EMC, reinforced six-channel digital isolators.

Applications

• Industrial automation

• Motor control

• Power supplies

• Solar inverters

• Medical equipment

Specifications

Description

The ISO776x devices are high-performance, sixchannel digital isolators with 5000-VRMS (DW package) and 3000-VRMS (DBQ package) isolation ratings per UL 1577. This family of devices is also certified according to VDE, CSA, TUV and CQC.

The ISO776x family of devices provides highelectromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. The ISO776x family of devices is available in all possible pin configurations such that all six channels are in the same direction, or one, two, or three channels are in reverse direction while the remaining channels are in forward direction. If the input power or signal is lost, the default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details.

Used in conjunction with isolated power supplies, this family of devices helps prevent noise currents on data buses, such as RS-485, RS-232, and CAN , or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of the ISO776x family of devices has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO776x family of devices is available in 16-pin SOIC and SSOP packages.

Features

• 100 Mbps data rate

• Robust isolation barrier

• Wide supply range: 2.25 V to 5.5 V

• 2.25-V to 5.5-V Level translation

• Default output high (ISO776x) and low (ISO776xF) Options

• Wide temperature range: –55°C to +125°C

• Low power consumption, typical 1.4 mA per channel at 1 Mbps

• Low propagation delay: 11 ns typical at 5 V • Robust Electromagnetic Compatibility (EMC)

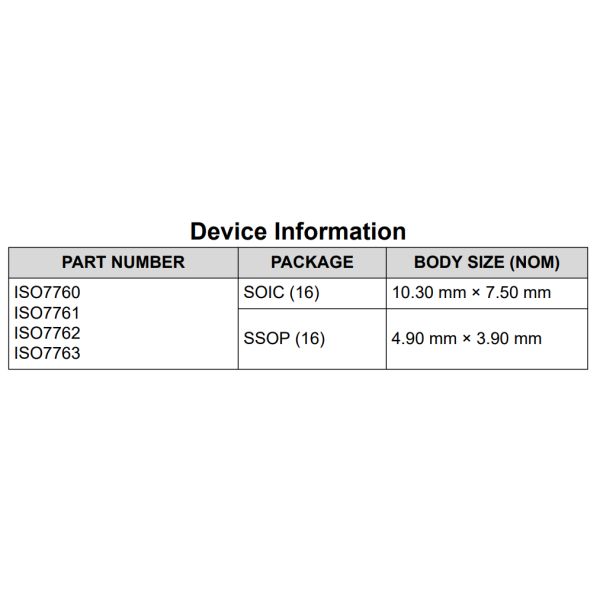

• Wide-SOIC (DW-16) and SSOP (DBQ-16) package options

• Automotive version available: ISO776x-Q1

• Safety-related certifications
