PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic
PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic
PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic
PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic
PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic
PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic
Specifications
Brand Name :
Microchip
Model Number :
PIC12F629-I/P
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
3-5days
Packaging Details :
60
Product Category: :
8-bit Microcontrollers - MCU
Package / Case: :
PDIP-8
Mounting Style: :
Through Hole
Data RAM Type: :
RAM
Data ROM Type: :
EEPROM
Program Memory Type: :
Flash
Factory Pack Quantity :
60
Description

Product Description:

PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller
High-Performance RISC CPU:
• Only 35 Instructions to Learn
- All single-cycle instructions except branches
• Operating Speed:
- DC – 20 MHz oscillator/clock input
- DC – 200 ns instruction cycle
• Interrupt Capability
• 8-Level Deep Hardware Stack
• Direct, Indirect, and Relative Addressing modes
Low-Power Features:
• Standby Current: - 1 nA @ 2.0V, typical
• Operating Current:
- 8.5 A @ 32 kHz, 2.0V, typical
- 100 A @ 1 MHz, 2.0V, typical
• Watchdog Timer Current
- 300 nA @ 2.0V, typical
• Timer1 Oscillator Current:
- 4 A @ 32 kHz, 2.0V, typical
PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic

Features:

• 6 I/O Pins with Individual Direction Control

• High Current Sink/Source for Direct LED Drive

• Analog Comparator module with:

- One analog comparator

- Programmable on-chip comparator voltage reference (CVREF) module

- Programmable input multiplexing from device inputs

- Comparator output is externally accessible

• Analog-to-Digital Converter module (PIC12F675):

- 10-bit resolution

- Programmable 4-channel input

- Voltage reference input

• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler

• Enhanced Timer1:

- 16-bit timer/counter with prescaler

- External Gate Input mode

- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected

• In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

PIC12F629-I/P 8-Pin Flash-Based 8-Bit CMOS Microcontroller PIC12F629 1.75KB 64 RAM 6 I/O Ind Temp PDIP8 mcu ic

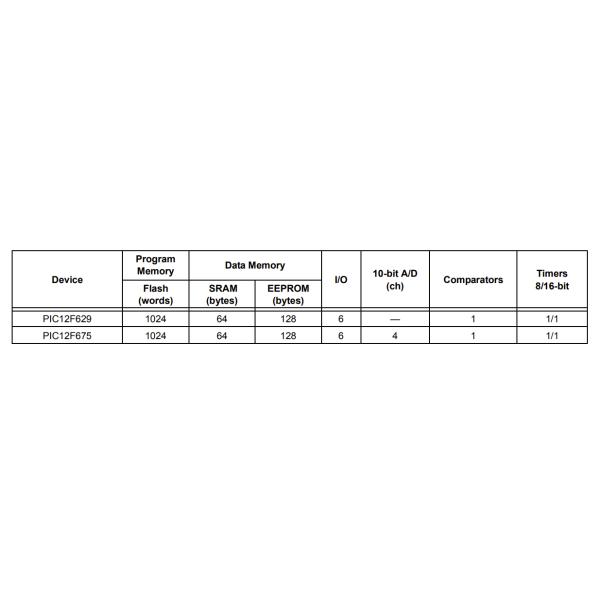

Specifications:

Product Attribute Attribute Value
Microchip
Product Category: 8-bit Microcontrollers - MCU
1.75 kB
64 B
PDIP-8
20 MHz
No ADC
6 I/O
2 V
5.5 V
Through Hole
8 bit
- 40 C
+ 85 C
Tube
Brand: Microchip Technology
Data RAM Type: RAM
Data ROM Size: 128 B
Data ROM Type: EEPROM
Height: 3.3 mm
Interface Type: RS-232, USB
Length: 9.27 mm
Number of Timers/Counters: 2 Timer
Processor Series: PIC12F
Product: MCUs
Product Type: 8-bit Microcontrollers - MCU
Program Memory Type: Flash
Subcategory: Microcontrollers - MCU
Watchdog Timers: Watchdog Timer
Width: 6.35 mm
Unit Weight: 0.032805 oz
