VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10
VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10
VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10
VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10
Specifications
Brand Name :
STMicroelectronics
Model Number :
VN340SP-E
Place of Origin :
Malaysia
MOQ :
5PCS
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram,GooglePay
Supply Ability :
25000pcs Per Mouth
Delivery Time :
6-10 days
Packaging Details :
1000Pcs/Reel
Product Category: :
VN340SP-E
Description :
Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10
Certification: :
Original Factory Pack
Warranty :
90 Days
Shipping by :
DHL\UPS\Fedex\EMS\HK Post
Unit Weight: :
0.040001 oz
Description

VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10

Description

The VN340SP-33-E is a monolithic device
developed using STMicroelectronics' VIPower
technology, intended to drive four independent
resistive or inductive loads with one side
connected to ground. Active current limitation
prevents dropping of the system power supply in
case of shorted load. Built-in thermal shutdown
protects the chip from overtemperature and
short-circuit. The open drain diagnostic output
indicates overtemperature conditions. Each I/O is
pulled down when the overtemperature condition
of the relative channel is verified.

Features

VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10

Notes:
(1)
Per channel
• Output current: 1 A per channel
• Digital I/O clamped at 32 V minimum voltage
• Shorted load and overtemperature
protections
• Protection against loss of ground
• Built-in current limiter
• Undervoltage shutdown

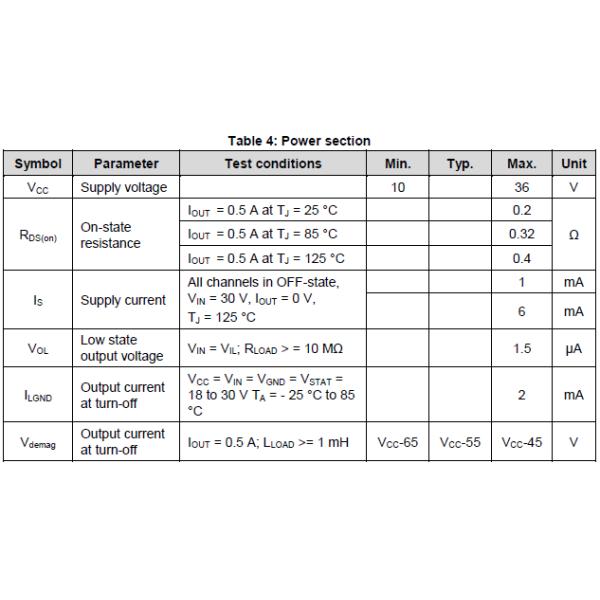

Electrical characteristics
10 V < VCC < 36 V; -40 °C < TJ < 125 °C; unless otherwise specified

VN340SP-E Quad high-side smart power solid-state relay VN340SP-E 1A 10V to 36V PowerSO-10

Specifications

Product Attribute Attribute Value
4 Driver
4 Output
1 A
10 V
36 V
94 us
8 us
- 40 C
+ 125 C
