TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
Specifications
Description :
TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
Stock :
In Stock
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Shipping Method :
LCL, AIR, FCL, Express
Model :
TLC2543IDW
Type :
Drive IC
Condition :
New&original
Lead free status :
RoHS Compliant / Lead free
Shipping by :
DHL\UPS\Fedex\EMS\HK Post
Lead time :
Immediately Shipment
Description

TLC2543IDW

DESCRIPTION
description The TLC2543C and TLC2543I are 12-bit, switchedcapacitor, successive-approximation, analog-todigital converters. Each device, with three control inputs [chip select (CS), the input-output clock, and the address input (DATA INPUT)], is designed for communication with the serial port of a host processor or peripheral through a serial 3-state output. The device allows high-speed data transfers from the host. In addition to the high-speed converter and versatile control capability, the device has an on-chip 14-channel multiplexer that can select any one of 11 inputs or any one of three internal self-test voltages. The sample-and-hold function is automatic. At the end of conversion, the end-of-conversion (EOC) output goes high to indicate that conversion is complete. The converter incorporated in the device features differential high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low-error conversion over the full operating temperature range. The TLC2543C is characterized for operation from TA = 0°C to 70°C. The TLC2543I is characterized for operation from TA = –40°C to 85°C.

Product specifications

types ofdescribe
categoryIntegrated Circuit (IC)
manufacturerTexas Instruments
digit12
Sampling rate (per second)66k
input number1:1
Number of A/D converters1
architectureSAR
Reference Typeexternal
Voltage supply, analog5V
Voltage supply, digital5V
operation temperature-40°C ~ 85°C
Packaging/Housing20-SOIC (0.295 ", 7.50mm wide)
Installation typeSurface mount type

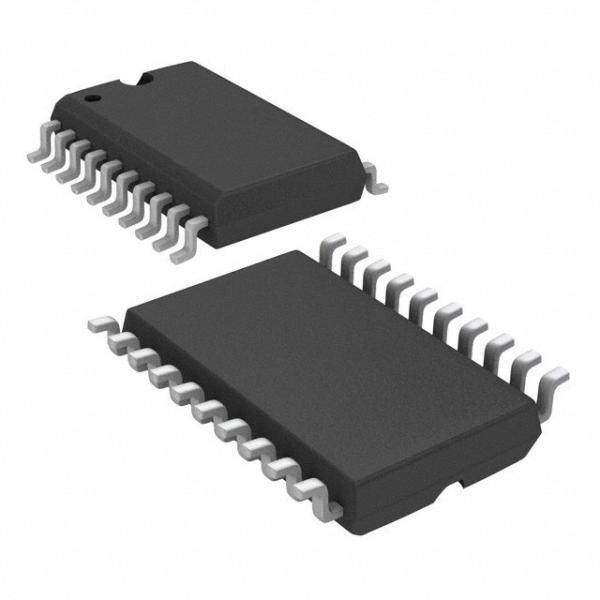

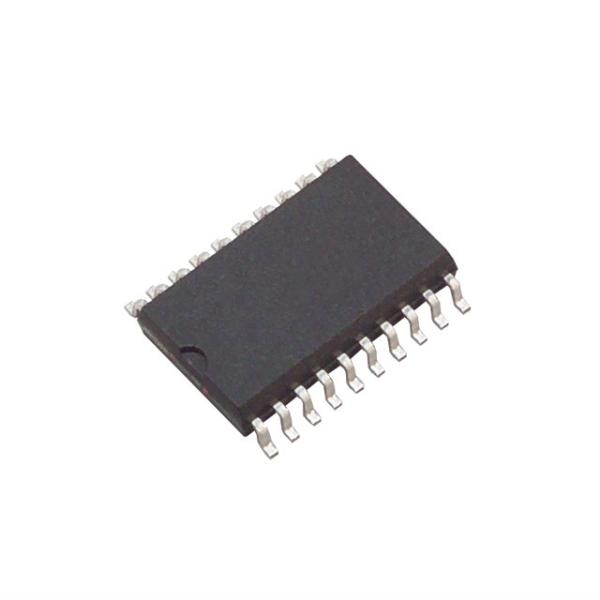

Product image
TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
TLC2543IDW IC ADC 12BIT SAR 20SOIC 12 bit analog-to-digital converter 11 input 1 SAR 20-SOIC
