Long Life OPzV Gel Battery Rechargeable 2V3000Ah
Long Life OPzV Gel Battery Rechargeable 2V3000Ah
Long Life OPzV Gel Battery Rechargeable 2V3000Ah
Long Life OPzV Gel Battery Rechargeable 2V3000Ah
Specifications
Model Number :
OPzV2-3000
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C, D/A, D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Type :
Tubular Gel Battery
Nominal Voltage :
2V
Rated Capacity :
3000Ah
Battery Case :
ABS
Battery Designed Life :
More than 20 Years
Approx Weight :
220Kg
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Description

Long Life Rechargeable 2V3000ah OPzV Battery gel tubular battery Pure Gel Battery

Product Features

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.

Construction


Positive plate :Tubular plate with die cast Pb-Ca alloy grid

Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

Separator : leaf shape polymer separator

Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel

Battery container and cover : ABS

Pillar seal: 100% factory tested, proven two layers epoxy resin seal

Relief valve : Complete with integrated flame arrestor

Specifications

Nominal Voltage (V)2
Designed Floating Life (20oC)20+ Years
Nominal Capacity (20oC)3000 Ah @ C10 (to 1.80Vpc)
DemensionsL576mm×W212mm×H807mm
Approx. Weight220 kg (485 lbs)
Terminal TypeFemale Copper Insert M8 (torque:10~12N.m)
Internal ResistanceApprox. 0.16mOhm (fully charged @ 20°C)
Max. Charge Current600 A
Max. Discharge Current (5S)4000 A
Short Circuit Current12000 A
Self DischargeApprox. 2% per month @ 20°C

Ambient Temperature

Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage2.25 - 2.29V(-3mV / ℃/ cell)
Equalize Charge Voltage2.35 - 2.40V(-3mV / ℃/ cell)
Container MaterialABS(UL94-V0 optional)

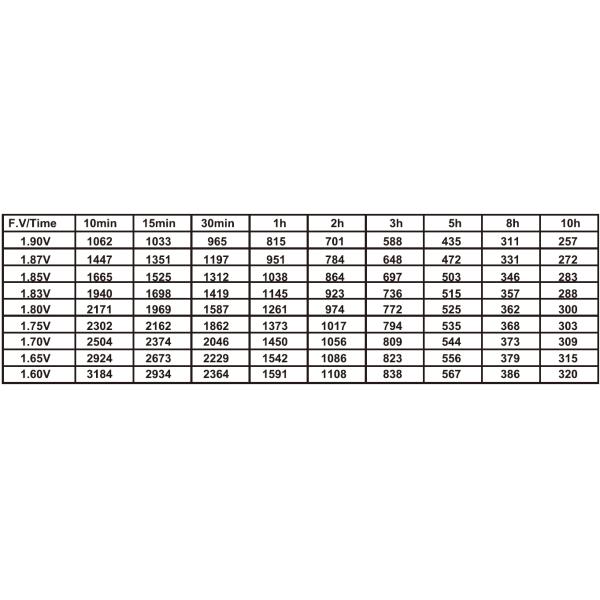

Constant Current Discharge Characteristics: Amps(20℃)

Long Life OPzV Gel Battery Rechargeable 2V3000Ah

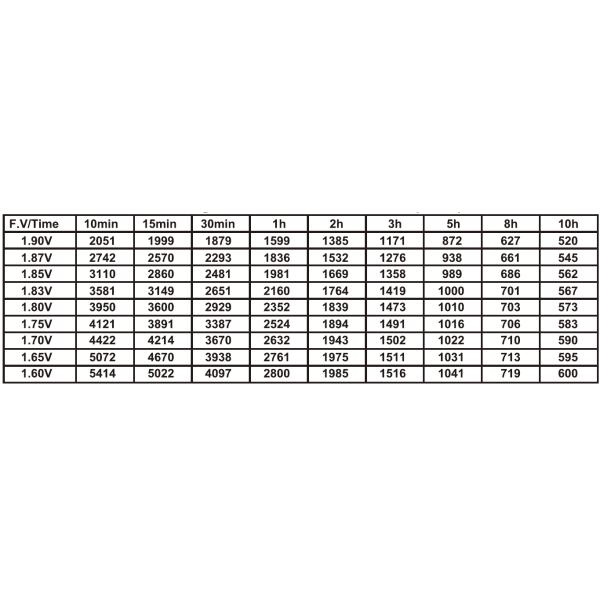

Constant Power Discharge Characteristics: W/cell(20℃)

Long Life OPzV Gel Battery Rechargeable 2V3000Ah

Application

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages

1. 20+ years design life at floating condition.

2. Wide operating temperature range from -40C to 60C.

3. Tubular positive plate with prolonged cycle life.

4. Nano Silica gel electrolyte.

5. Lead Calcium die cast grid with improved corrosion resistance capability.

6. Excellent deep discharge recovery capability.
