ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved
ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved
Specifications
Brand Name :
Fbattery
Model Number :
OPzV12-100
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C, D/A, D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Type :
Tubular Gel Battery
Nominal Voltage :
12V
Rated Capacity :
100Ah
Battery Case :
ABS
Battery Designed Life :
More than 20 Years
Approx Weight :
35Kg
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Application :
communication and power, solar and wind power generation systems, large UPS,computer power supplies,other DC backup power sources
Description

12V100Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

Product Features

The OPzV range of valve regulated lead-acid batteries uses a proven combination of gel and tubular technologies to offer a very high level of reliability. These single cells benefit from an optimised plate design that gives capacities in excess of DIN standard values. In addition,OPzV batteries offer both an excellent float life and a high cycle life for a truly flexible solution.

Construction

Positive plate :Tubular plate with die cast Pb-Ca alloy grid

Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

Separator : leaf shape polymer separator

Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel

Battery container and cover : ABS

Pillar seal: 100% factory tested, proven two layers epoxy resin seal

Relief valve : Complete with integrated flame arrestor


Specifications

Nominal Voltage (V) 12
Designed Floating Life (20oC) 20+ Years
Nominal Capacity (20oC) 100 Ah @ C10 (to 1.80Vpc)
Demensions L409mm×W176mm×H223mm
Approx. Weight 35 kg (80.0 lbs)
Terminal Type Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance Approx. 0.56mOhm (fully charged @ 25°C)
Max. Charge Current 20 A
Max. Discharge Current (5S) 625A
Short Circuit Current 2600 A
Self Discharge Approx. 2% per month @ 20°C

Ambient Temperature

 Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage 2.23V @25oC (-3mV / oC/ cell)
Equalize Charge Voltage 2.35V @25oC
Container Material ABS(UL94-V0 optional)

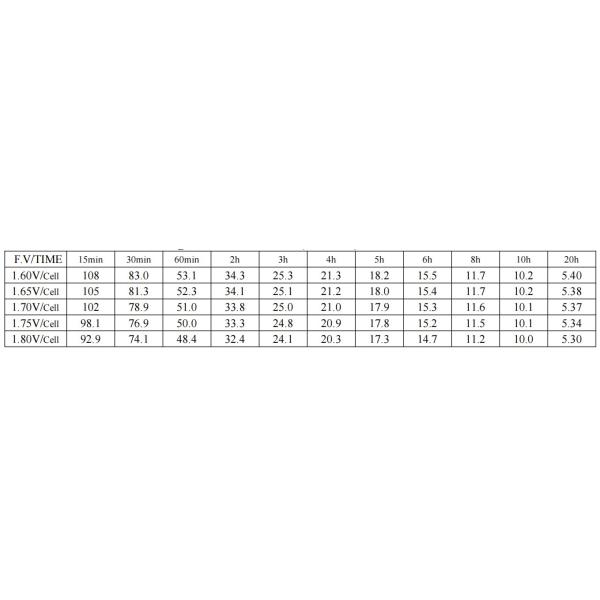

Constant Current Discharge Characteristics: Amps (20°C)

ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved

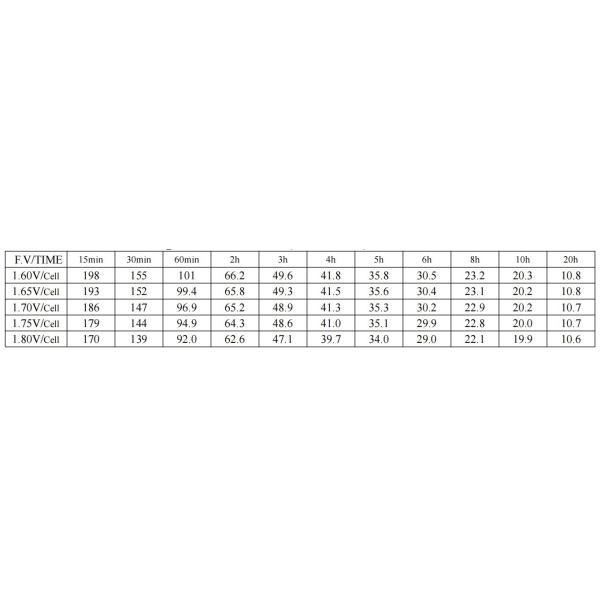

Constant Power Discharge Characteristics: W/cell (20°C)

ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved

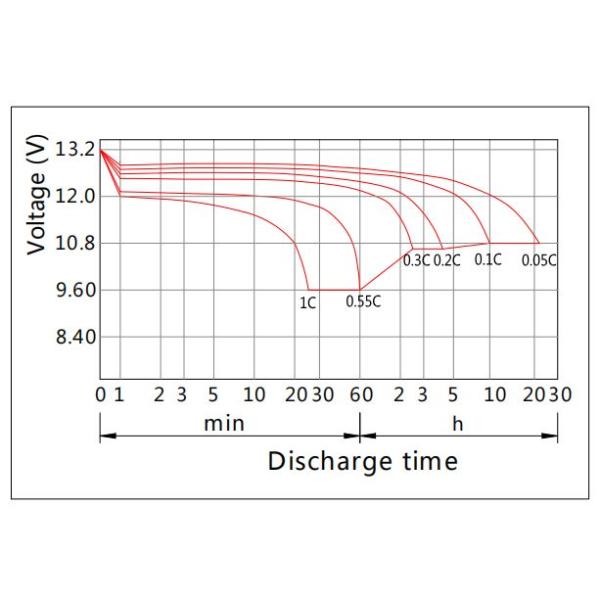

Discharge Characteristic(25℃)

ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved

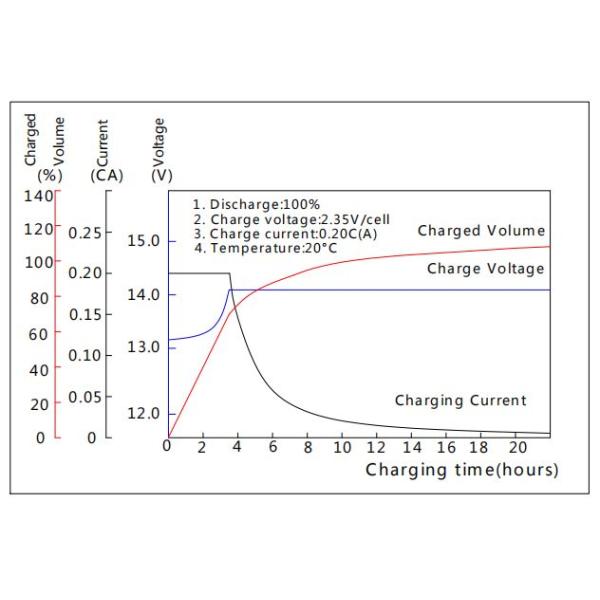

Charge Characteristic(25℃)

ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved

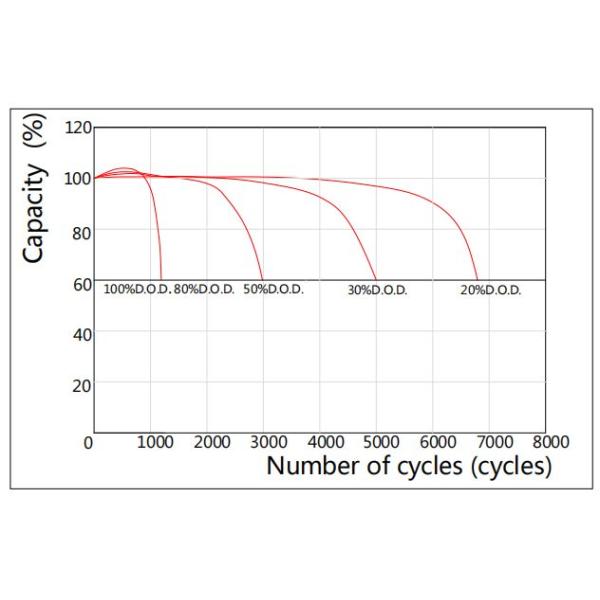

Cycle Life on DOD(25℃)

ABS Case 12V100Ah OPzV Gel Battery Corrosion Resistance Pure Gel Battery CE Approved

Application

Power and control systems in the fields of communication and power, solar and wind power generation systems, large UPS and computer power supplies, and other DC backup power sources

Advantages

1. Designed floating service life: >20years @25°C/77°F

2. Wide operating temperature range from -40C to 60C.

3. Tubular positive plate with prolonged cycle life.

4. Nano Silica gel electrolyte.

5. Lead Calcium die cast grid with improved corrosion resistance capability.

6. Excellent deep discharge recovery capability.

Fbattery OPzV manufacturing facilities with wealthy experience ensure it’s tubular OPzV gelled batteries reliable performance, safety, outstanding battery life and value. Each cell is 100% factory tested.
