LCD Smart Interactive Whiteboard All In One Panel Display ODM
LCD Smart Interactive Whiteboard All In One Panel Display ODM
LCD Smart Interactive Whiteboard All In One Panel Display ODM
LCD Smart Interactive Whiteboard All In One Panel Display ODM
Specifications
Brand Name :
Astouch
Model Number :
A55-IWB06
Certification :
CE FCC RoHS EAC CCC BIS CB ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 520 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per Month
Delivery Time :
5-10 working days
Packaging Details :
1 piece into 1 master carton, 6 cartons per pallet
Panel Size :
55 inch (16:9)
Max. Brightness :
350cd/m²
Resolution :
4K: 3840*2160
Panel Life :
50000 hours
Responsive Time :
8ms
Viewing Angle :
H178/V178
Android CPU :
Quad-core, Octa core optional
Android Version :
Android 11, Android 12 optional
RAM and ROM :
4+32G, 8+128G optional
OEM/ODM :
YES
Description

55 Inch LCD Touch Whiteboard All In One Interactive Panel Display

* Quad core Android 11 optional
* Octa core Android 12 optional

* 4G+32G, 8G+64G, 8G+128G optional
* IR touch with 20 & 40 points optional
* H178/V178 viewing angle
* Support function DMS (one main device to control all devices)

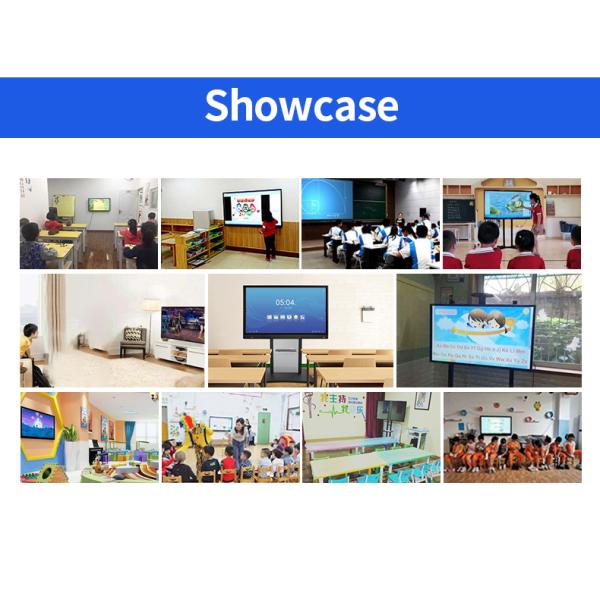

* Mainly for school eductaion & commercial conferences

Interactive flat panel is a type of advanced electronic display that enables users to interact with the content on the screen.

It is a popular tool for collaborative learning, presentations, and meetings. Unlike traditional projectors or whiteboards, interactive flat panels offer a high-quality touch-enabled surface that allows users to write, draw, and annotate content using a variety of tools and colors. They are also equipped with advanced features such as screen sharing, video conferencing, and app integration, making them versatile and multifunctional.

One of the biggest advantages of interactive flat panels is their ease of use. They are user-friendly and do not require any technical expertise or training. They also offer a big-screen experience, with high-resolution displays that ensure clarity and visibility even in large rooms.

Interactive flat panels are used by a wide range of industries, including education, corporate, hospitality, healthcare, and more. They have revolutionized the way business meetings are conducted, classroom lectures are delivered, and presentations are made. With their advanced features and user-friendly interface, they are quickly becoming the preferred choice for organizations that want to enhance collaboration, productivity, and creativity.

Product Parameters in details of Interactive Touch Panel:

Model Name

Smart Interactive Touch Panel
Size

55inch (65inch, 75inch, 85inch, 86inch, 98inch, 110inch optional)
Screen Resolution

4K: 3840*2160 / 60Hz
Max Brightness

350nits
Default System

Android 11
CPU

1) Amlogic 982, Quad core A55*4, 1.9GHz

2) Octa core optional
GPU

Mali-G52
RAM+ROM

4G+32G,

(8G+64G, 8G+128G optional)
WIRELESS

WiFi: 2.4G + BT / Hotspot: 2.4G + 5G

(Dual 5G / WIfi 6 optional)
Screen sharing App

4 screens sharing

(9-screen sharing optional)
Default APP

Whiteboard / Google Play Store / Google Chrome / etc

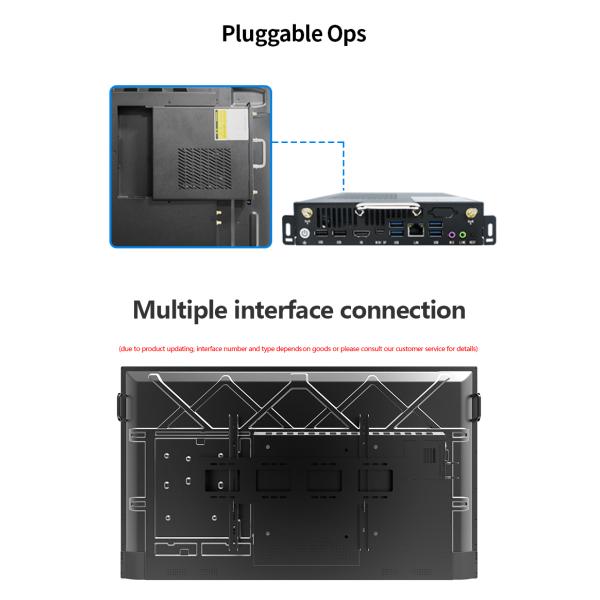

OPS support

4K: 3840*2160 / 30Hz (/ 60Hz)
OPS' Max Input Supported

55/65 inch,110W≤POWER CONSUMPTION;
75/86/100 inch,150W≤POWER CONSUMPTION
IR Touch Points

Multitouch: Android 20 Ponits

【Optional Windows 40 point】
AG Glass

Anti-glare 4mm
Loud Speaker

8Ω 15W *2
Front I/O

HDMI in *1, Touch USB *1, Type-C *1, USB * 3, Power button *1
Rear I/O

HDMI in *2, AV IN *1, AV OUT *1,

SPDIF out *1, Earphone * 1, RJ45 *1,

USB2.0 *1, USB3.0 *1, HDMI out *1,

RS232 UART *1, Touch USB *1,

[ VGA *1 + YPBPR *1 + VGA Audio IN *1, etc optional ]
Weight & Size

55kg, 137*21*90cm
Standard Accessories

Interactive flat panel,

Wall mount bracket,

AC power charger,

Remote control,

2pcs Magnetic pens
OPTIONAL functions

13MP/ 48MP Camera + 8 array Microphone,

Dual 5G,

HDMI OUT,

Wifi 6,

Type-C,

etc
