4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching
4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching
4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching
4K Smart Board Interactive Whiteboard 75 Inch IR Whiteboard Teaching
Specifications
Brand Name :
Astouch
Model Number :
A75-IWB06
Certification :
CE FCC RoHS EAC CCC BIS CB ISO9001
Place of Origin :
China
MOQ :
1 piece
Price :
USD 750 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per Month
Delivery Time :
5-10 working days
Packaging Details :
1 piece into 1 master carton, 6 cartons per pallet
Panel Size :
75 inch (16:9)
Max. Brightness :
350cd/m²
Resolution :
4K: 3840*2160
Android Version :
Android 11, Android 12 optional
RAM and ROM :
4+32G, 8+128G optional
Operation System :
Windows optional
Description

75 Inch Teaching Smart Board Interactive Whiteboard with Camera Microphone

* Quad core Android 11 & Octa core Android 12 optional

* 4G+32G, 8G+64G, 8G+128G optional
* IR touch with 20 & 40 points optional
* Support function DMS (one main device to control all devices)

* Mainly for school eductaion & commercial conferences

Interactive flat panel is a type of advanced electronic display that enables users to interact with the content on the screen.

Interactive flat panels are commonly used in various settings where visual presentations or collaborations are needed, such as in classrooms, boardrooms, meeting rooms, training centers, and conference centers. They are becoming increasingly popular in education and corporate environments as they offer a more interactive and engaging way of presenting information, collaborating, and sharing ideas.


In classrooms, interactive flat panels can be used as a tool for teaching and learning, allowing teachers to create interactive lessons, annotate on digital content, and engage students in a more dynamic way. In corporate settings, they are often used for video conferencing, brainstorming sessions, and presentations.


Interactive flat panels can also be found in public spaces such as museums, exhibition centers, and libraries, where they are used to display information in an interactive and visually compelling way to engage visitors. Overall, interactive flat panels offer a versatile and effective tool for communication, collaboration, and information sharing in a variety of settings.

Product Parameters in details of Interactive Touch Panel:

Model Name

Smart Interactive Touch Panel
Size

75inch (55inch, 65inch, 85inch, 86inch, 98inch, 110inch optional)
Screen Resolution

4K: 3840*2160 / 60Hz
Max Brightness

350nits
Default System

Android 11
CPU

1) Amlogic 982, Quad core A55*4, 1.9GHz

2) Octa core optional
GPU

Mali-G52*4
RAM+ROM

4G+32G,

(8G+64G, 8G+128G optional)
WIRELESS

WiFi: 2.4G + BT / Hotspot: 2.4G + 5G

(Dual 5G / WIfi 6 optional)
Screen sharing App

4 screens sharing

(9-screen sharing optional)
Default APP

Whiteboard / Google Play Store / Google Chrome / etc

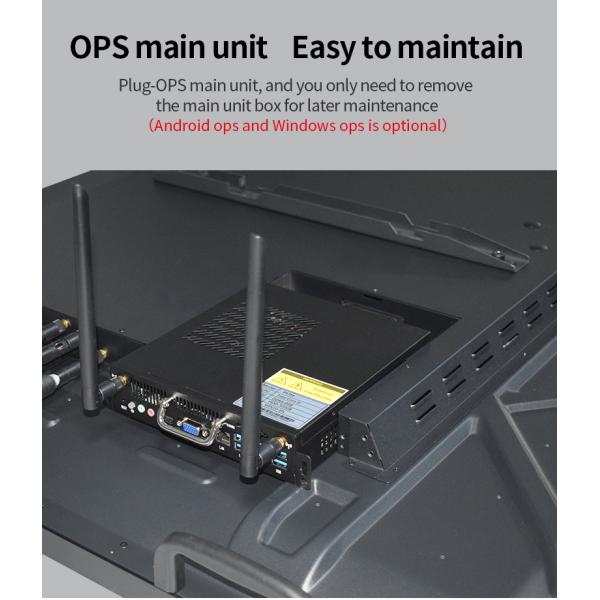

OPS support

4K: 3840*2160 / 30Hz (/ 60Hz)
OPS' Max Input Supported

55/65 inch,110W≤POWER CONSUMPTION;
75/86/100 inch,150W≤POWER CONSUMPTION
IR Touch Points

Multitouch: Android 20 Ponits

【Optional Windows 40 point】
AG Glass

Anti-glare 4mm
Loud Speaker

8Ω 15W *2
Front I/O

HDMI in *1, Touch USB *1, Type-C *1, USB * 3, Power button *1
Rear I/O

HDMI in *2, AV IN *1, AV OUT *1,

SPDIF out *1, Earphone * 1, RJ45 *1,

USB2.0 *1, USB3.0 *1, HDMI out *1,

RS232 UART *1, Touch USB *1,

[ VGA *1 + YPBPR *1 + VGA Audio IN *1, etc optional ]
Weight & Size

75kg, 183*18*119cm
Standard Accessories

Interactive flat panel,

Wall mount bracket,

AC power charger,

Remote control,

2pcs Magnetic pens
OPTIONAL functions

13MP/ 48MP Camera + 8 array Microphone,

Dual 5G,

HDMI OUT,

Wifi 6,

Type-C,

etc
