Master Touch Explosion Proof 10.1 Inch Capacitive Transparent GG Touch Panel

1. Product Description

Capacitive touch screen is a world popular trend for its highest positioning and fast response, the response time is shorter than resistive touch screen, antistatic ability, save space, display is the user interface and interface mode diversity, low power, water-proof, fog-proof, design more beautiful, specially on industrial equipment and POS machine (ATM, self-service terminals, smart home and medical equipment), the touch panel is made of glass and glass, also, it has good transparent and has multi-points touching.

2. Basic Features

4. Optical Characteristics

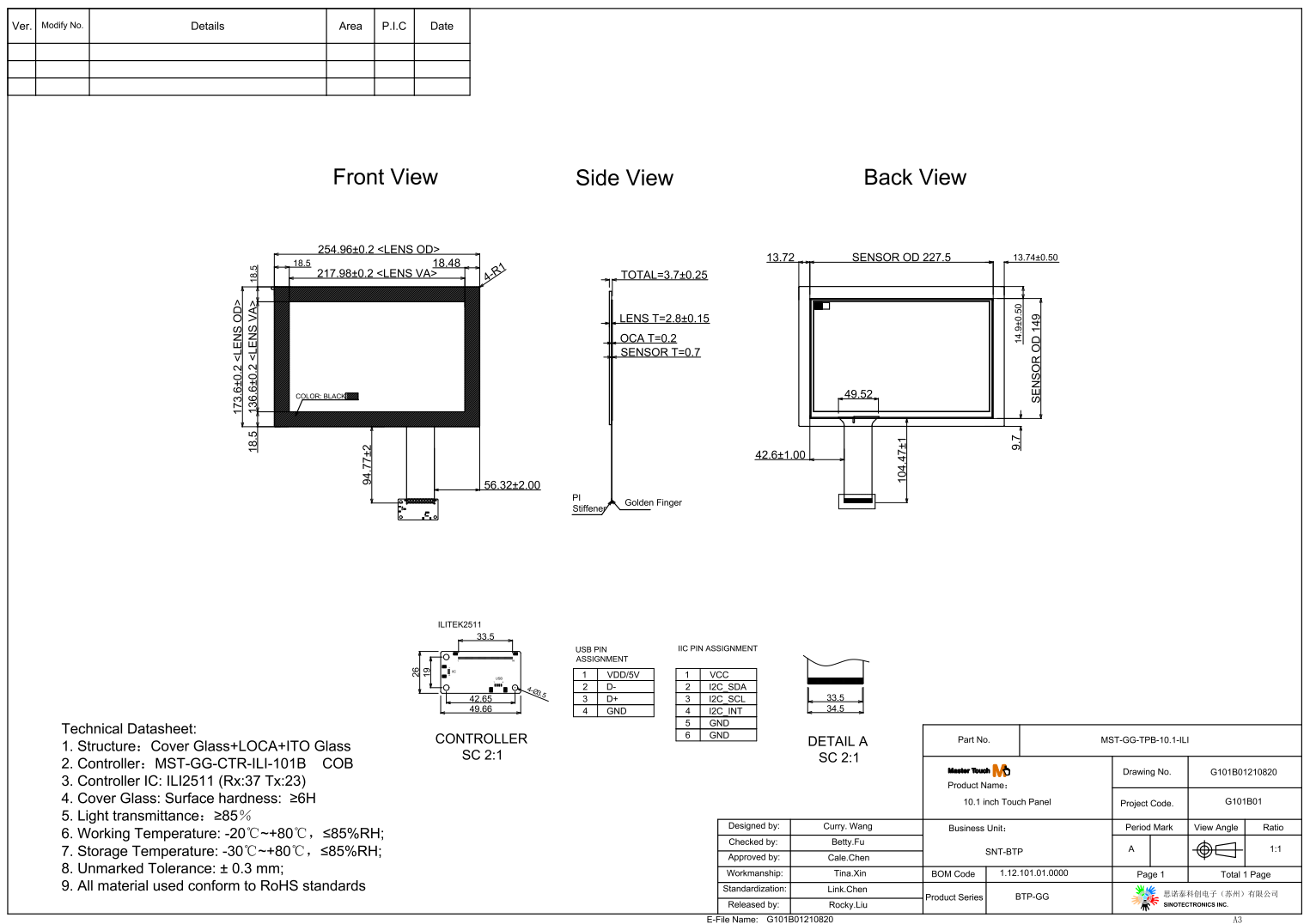

6. Drawing

7. Details

8. Cosmetic Inspection

The following standard only applies to the visual areas. If the TP function is good, the non-visual appearance may negotiate to relax the standard. W=Width L=length D=Diameter GT=Glass thickness. If soft cloth which dips in alcohol can wipe besmirch, it does not apply to this appearance standards.

Inspection methods and conditions:

1)Inspection environment: Temperature:20-22 ℃; Humidity: 65 + 10% RH;

2)Inspector qualifications: The appearance of product must be inspect by a good eyesight inspector.

3) Inspection methods: The distance between inspector and product should be 30±2cm and putting a lamp 12 to 20 watts of cold white fluorescent lamp in the observation station of product.

Pay attention to the following matters when inspection:

A.Inspectors must wear a fingerstall.

B.Put the product in front of inspector, hands hold the edge of products carefully and can’t make it bended.

C.Inspectors shouldn’t stare at a certain point but continue covered watching.

D.According to the following standards judge whether products conform to the requirement. If found other defect, from perspective of appearance consider whether customers accept this defect in end product.

9. FAQ
