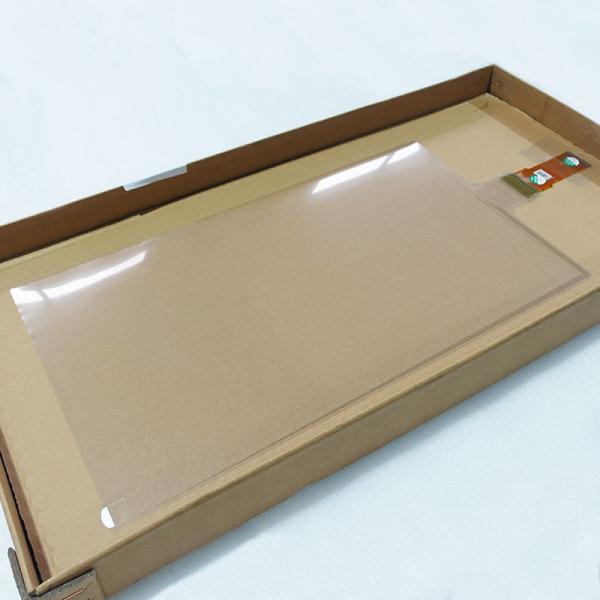

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window
15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window
Specifications
Brand Name :
Master Touch
Model Number :
MST-MCW-TFS-15-STM
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/month
Delivery Time :
5-8days
Packaging Details :
55*14*14cm Paper Tube
Product name :
Pcap Touch Foil
Controller :
STM
Material :
PET Film+OCA+Micro Copper Wire
Touch point :
1-12 (optional)
View Area :
15 inch (customized)
Application :
Shopping Window/Signage/Industrial Touch Panel, etc.
Color :
Transparent
Foil Size :
328.25*249.65mm
Description

Master Touch 15 Inch XTM Controller Short Side Touch Foil Screen

1. Product Description

Master Touch capacitive touch film STM focuses on 7-32 inches, long or short side FPC, which are suitable for industrial touch screen, query machine and other fields. In addition to the general touch screen , the product has strong penetration, good waterproof effect, stability and reliability. In the field of industrial control or consuming application, glass is thicker, waterproof and many other requirements, while the stability requirements are very strong, STM is the best choice.

2. Technical Datasheet

Part No.: MST-MCW-TFS-15-STM
BOM Code: 1.11.150.01.0000
Project Code: M150S
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STM Series
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 6mm
Screen Ratio: 4:3
Foil Size: 328.25*249.65mm
Active Area: 304.8*228.6mm
Controller Size: 87.0*47.0mm
FPC direction: Short side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~12 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

3. Drawing

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

4. Details

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

5. Advantages of MST Touch Film

1. Light in Transportation 8. Work with projection film
2. Easy DIY Lamination 9. Cost-effectiveness
3. Smaller gap lamination 10. MOQ (Minimum Order Quantity)/Unlimited Quantity
4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof 11. Flat Design; Narrow Bezel; Attractive Appearance
5. Thick glass penetration (Max. 10-15mm) 12. Outdoor Application
6. Lowest surface resistance 13. Customized size Varies from 2 to 150 inch
7. Big size capacitive touch requests: up to: 4.2*1.35m (L*H) 14. Long life for both industrial and consuming level products application

6. Application

Interactive Shopping Window Outdoor Digital Signage
Industrial Touch Panel Interactive Black/White Board

7. How is a touch foil made?

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

8. How does the touch foil work?

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

Touch Foil without touch: Voltage is even;

Touch with finger: Voltage will increase.

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window

9. FAQ

15 Inch XTM Controller Short Side FPC Touch Foil Screen For Shopping Window
