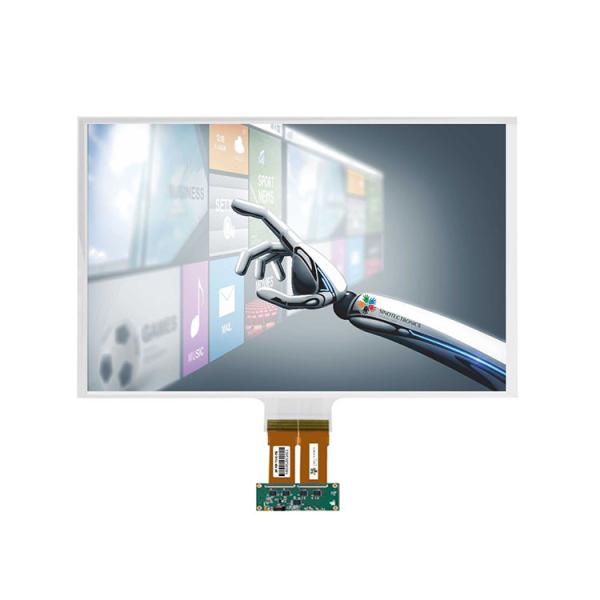

STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC
STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC
Specifications
Brand Name :
Master Touch
Model Number :
MST-MCW-TFB-84-STB
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/month
Delivery Time :
5-8days
Packaging Details :
Carton
Product name :
Pcap Touch Foil
Controller :
STB
Touch point :
1~40 points (adjustable)
View Area :
84 inch (customized)
Application :
Shopping Window/Signage/Industrial Touch Panel, etc.
Color :
Transparent
Screen Ratio :
16:9
Foil Size :
1886.44*1084.12mm
Description

Master Touch STB IC 84 Inch Big Size Commercial Usage Touch Foil Film

1. Product Description

Master Touch touch foil film has the following outstanding strengths:

  • Drivers support Windows XP ,Windows 7, Windows 8, Windows 10 (32 / 64 ) versions, Mac OSX, Linux versions.
  • Compact structure, easy to install on glass, light weight, suitable for lamination to glass, acrylic or camera.
  • Transparent appearance, frameless, durable, safe to use, cool looking.
  • Low impedance, can be made of extra thick glass, easy to bend, can also be used for curved screens.

2. Technical Datasheet

Part No.: MST-MCW-TFB-84-STB
BOM Code: 1.11.840.02.0000
Project Code: M840B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STB
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 10mm
Screen Ratio: 16:9
Foil Size: 1886.44*1084.12mm
Active Area: 1859.59*1046.02mm
Controller Size: 176.0*53.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~40 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

3. Drawing

STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC

4. Details

STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC

5. Application

Interactive Shopping Window, Outdoor Digital Signage,

Industrial Touch Panel, Interactive Black/White Board, etc.

STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC

STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC

6. Basic User Guide

① Environment: Comparative Cleanroom
② Lamination Material Choose: Clean and flat
③ Pre-test before Lamination
④ Tools used: Sprayer, Squeezee, etc,

⑤ Direction: Center to side
⑥ Dry and installation:
⑦ Test and calibration

7. FAQ

STB IC Commercial Big 84 Inch Touch Screen Foil Film Long Side FPC
