1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference
1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference
Specifications
Brand Name :
Master Touch
Model Number :
MST-MCW-TFB-90-STB
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/month
Delivery Time :
5-8days
Packaging Details :
Carton
Product name :
Pcap Touch Foil
Controller :
STB
Touch point :
1-40
View Area :
90 inch (customized)
Application :
Shopping Window/Signage/Industrial Touch Panel, etc.
Transportation :
UPS/DHL/Fedex
Temperature Range :
-15℃ to + 75℃
Touch Technology :
Projected Capacitive
Description

Master Touch 90 Inch Anti-light Interference Conductive Touch Screen Foil

1. Product Description

Master Touch foil products have the following advantages:

  • Using unique sensing and computing technology, accurate positioning, can be used through glass touch and wearing gloves.
  • No mechanical or pressure-sensitive components, durable; insensitive to external light sources, changes in ambient light will not affect work.

2. Technical Datasheet

Part No.: MST-MCW-TFB-90-STB
BOM Code: 1.11.900.02.0000
Project Code: M900B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STB
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 10mm
Screen Ratio: 16:9
Foil Size: 2019.27*1158.84mm
Active Area: 1992.42*1120.74mm
Controller Size: 176.0*53.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~40 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

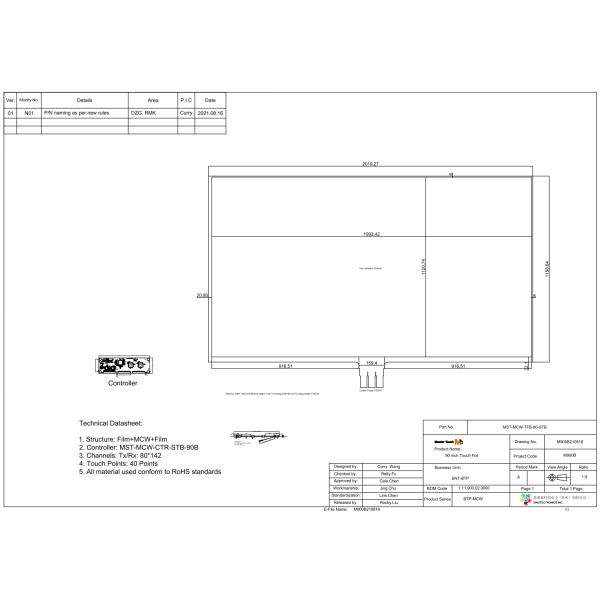

3. Drawing

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

4. Details

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

5. Advantages of MST Touch Film

1. Light in Transportation 8. Work with projection film
2. Easy DIY Lamination 9. Cost-effectiveness
3. Smaller gap lamination 10. MOQ (Minimum Order Quantity)/Unlimited Quantity
4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof 11. Flat Design; Narrow Bezel; Attractive Appearance
5. Thick glass penetration (Max. 10-15mm) 12. Outdoor Application
6. Lowest surface resistance 13. Customized size Varies from 2 to 150 inch
7. Big size capacitive touch requests: up to: 4.2*1.35m (L*H) 14. Long life for both industrial and consuming level products application

6. Application

Interactive Shopping Window Outdoor Digital Signage
Industrial Touch Panel Interactive Black/White Board

7. How is a touch foil made?

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

8. How does the touch foil work?

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

Touch Foil without touch: Voltage is even;

Touch with finger: Voltage will increase.

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference

9. FAQ

1-40 Points 90 Inch Conductive Touch Screen Foil Anti Light Interference
