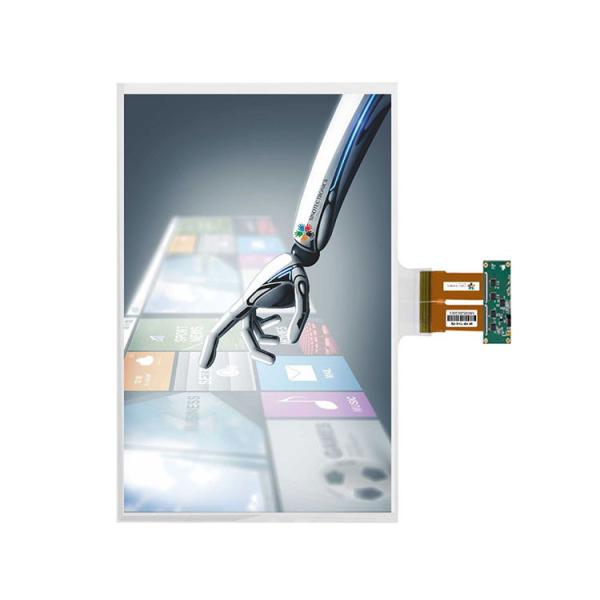

STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface
STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface
Specifications
Brand Name :
Master Touch
Model Number :
MST-MCW-TFB-98-STB
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/month
Delivery Time :
5-8days
Packaging Details :
Carton
Product name :
Pcap Touch Foil
Controller :
STB
Material :
PET Film+OCA+Micro Copper Wire
Touch point :
1~40 points (adjustable)
View Area :
98 inch (customized)
Application :
Shopping Window/Signage/Industrial Touch Panel, etc.
Color :
Transparent
Screen Ratio :
16:9
Description

Master Touch Zero Pressure Touch 98 Inch Touch Foil Using on Curved Surface

1. Product Description

Master Touch foil products have the following advantages:

  • Using unique sensing and computing technology, accurate positioning, can be used through glass touch and wearing gloves.
  • No mechanical or pressure-sensitive components, durable; insensitive to external light sources, changes in ambient light will not affect work.

2. Technical Datasheet

Part No.: MST-MCW-TFB-98-STB
BOM Code: 1.11.980.02.0000
Project Code: M980B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STB
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 10mm
Screen Ratio: 16:9
Foil Size: 2196.38*1258.46mm
Active Area: 2169.53*1220.36mm
Controller Size: 176.0*53.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~40 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

3. Drawing

STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface

4. Details

STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface

5. Application

Interactive Shopping Window, Outdoor Digital Signage,

Industrial Touch Panel, Interactive Black/White Board, etc.

STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface

STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface

6. Basic User Guide

① Environment: Comparative Cleanroom
② Lamination Material Choose: Clean and flat
③ Pre-test before Lamination
④ Tools used: Sprayer, Squeezee, etc,

⑤ Direction: Center to side
⑥ Dry and installation:
⑦ Test and calibration

7. FAQ

STB Controller Zero Force 98 Inch Touch Foil Screen For Curved Surface
