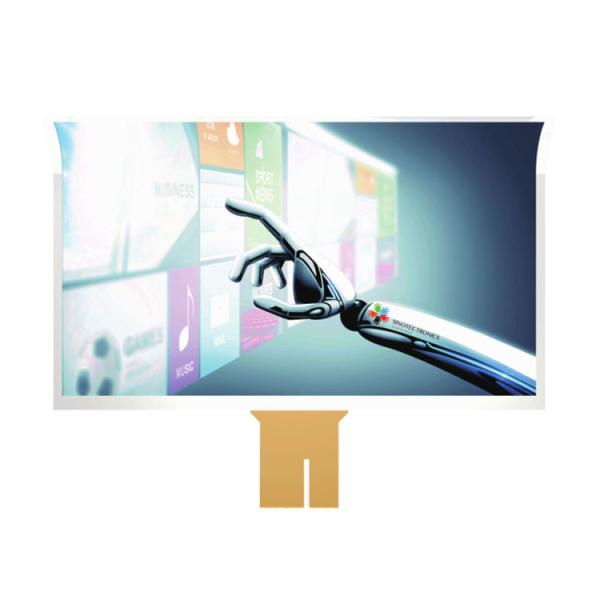

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen
Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen
Specifications
Brand Name :
Master Touch
Model Number :
MST-MCW-TFB-49-STA
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/month
Delivery Time :
5-8days
Packaging Details :
85*14*14cm Paper Tube
Product name :
Pcap Touch Foil
Controller :
STA
Touch accuracy :
PET Film+OCA+Micro Copper Wire
Touch point :
±1mm
View Area :
49 inch (customized)
Application :
Shopping Window/Signage/Industrial Touch Panel, etc.
Color :
Transparent
EMC :
EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Description

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

1. Product Description

Projective Capacitive touchscreen (P-CAP, Pro-Cap or PCAP touch screens) sensors function by maintaining a standing electrical charge across the sensor that extends through a contact surface, where changes in the electrical charge caused by the proximity of other capacitive bodies (such as touch stylus, fingers etc.) can be detected by a touch controller.

Due to the glass surface, the PCAP touch screens are particularly scratch-resistant and can be cleaned with all cleaning agents - an important advantage in hygienically sensitive areas.

2. Technical Datasheet

Part No.: MST-MCW-TFB-49-STA
BOM Code: 1.11.490.02.0000
Project Code: M490B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STA
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 10mm
Screen Ratio: 16:9
Foil Size: 1108.10*641.23mm
Active Area: 1084.76*610.18mm
Controller Size: 120.0*53.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~20 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC

EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

3. Drawing

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

4. Details

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

5. Advantages of MST Touch Film

1. Light in Transportation 8. Work with projection film
2. Easy DIY Lamination 9. Cost-effectiveness
3. Smaller gap lamination 10. MOQ (Minimum Order Quantity)/Unlimited Quantity
4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof 11. Flat Design; Narrow Bezel; Attractive Appearance
5. Thick glass penetration (Max. 10-15mm) 12. Outdoor Application
6. Lowest surface resistance 13. Customized size Varies from 2 to 150 inch
7. Big size capacitive touch requests: up to: 4.2*1.35m (L*H) 14. Long life for both industrial and consuming level products application

6. Application

Interactive Shopping Window Outdoor Digital Signage
Industrial Touch Panel Interactive Black/White Board

7. How is a touch foil made?

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

8. How does the touch foil work?

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

Touch Foil without touch: Voltage is even;

Touch with finger: Voltage will increase.

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen

9. FAQ

Master Touch 49 Inch Vandal Proof Cost-effectiveness Touch Foil Screen
