Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points
Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points
Specifications
Brand Name :
Master Touch
Model Number :
MST-MCW-TFB-80-STB
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/month
Delivery Time :
5-8days
Packaging Details :
Carton
Product name :
Pcap Touch Foil
Controller :
STB
Touch point :
Max. 40
View Area :
80 inch (customized)
Application :
Shopping Window/Signage/Industrial Touch Panel, etc.
Copper Wire Diameter :
15 microns
Certification :
RoHS, CB, ISO9001, ISO 9001:2000, ce, Reach, EMC
Touch Technology :
Projected Capacitive
Description

80 Inch Master Touch 40 Points Shopping Window PET Film Touch Foil

1. Product Description

Master Touch touch foil film has the following outstanding strengths:

  • Drivers support Windows XP ,Windows 7, Windows 8, Windows 10 (32 / 64 ) versions, Mac OSX, Linux versions.
  • Compact structure, easy to install on glass, light weight, suitable for lamination to glass, acrylic or camera.
  • Transparent appearance, frameless, durable, safe to use, cool looking.
  • Low impedance, can be made of extra thick glass, easy to bend, can also be used for curved screens.

2. Technical Datasheet

Part No.: MST-MCW-TFB-80-STB
BOM Code: 1.11.800.02.0000
Project Code: M800B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STB
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 10mm
Screen Ratio: 16:9
Foil Size: 1797.89*1034.31mm
Active Area: 1771.04*996.21mm
Controller Size: 176.0*53.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~40 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP ,Windows 7,Windows 8, Windows10 (32/64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

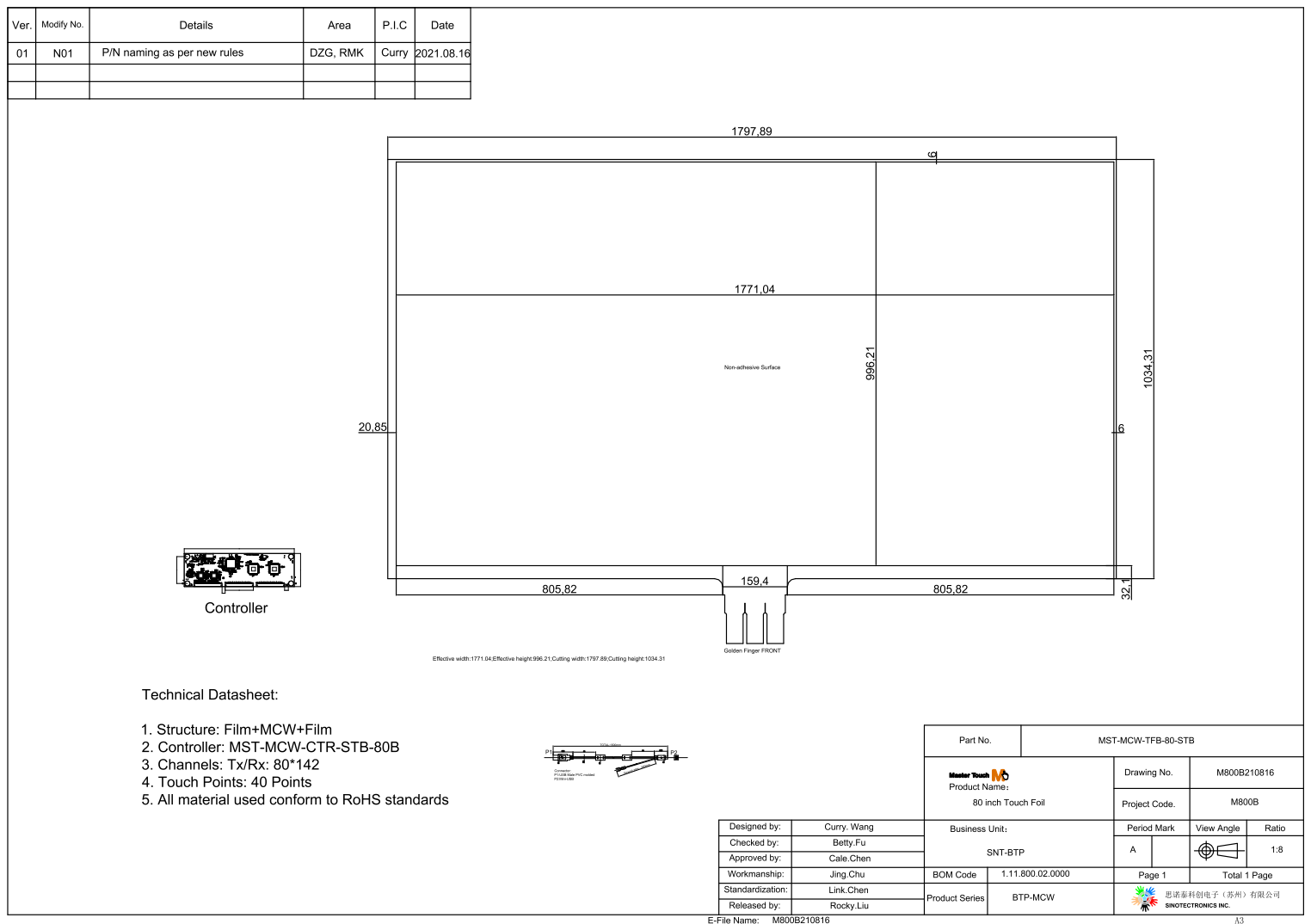

3. Drawing

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

4. Details

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

5. Advantages of MST Touch Film

1. Light in Transportation 8. Work with projection film
2. Easy DIY Lamination 9. Cost-effectiveness
3. Smaller gap lamination 10. MOQ (Minimum Order Quantity)/Unlimited Quantity
4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof 11. Flat Design; Narrow Bezel; Attractive Appearance
5. Thick glass penetration (Max. 10-15mm) 12. Outdoor Application
6. Lowest surface resistance 13. Customized size Varies from 2 to 150 inch
7. Big size capacitive touch requests: up to: 4.2*1.35m (L*H) 14. Long life for both industrial and consuming level products application

6. Application

Interactive Shopping Window Outdoor Digital Signage
Industrial Touch Panel Interactive Black/White Board

7. How is a touch foil made?

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

8. How does the touch foil work?

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

Touch Foil without touch: Voltage is even;

Touch with finger: Voltage will increase.

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points

9. FAQ

Shopping Window PET Film Touch Screen Foil 80 Inch 40 Points
