32768*32768 40 Inch Multi Touch Frame Industrial IR Touch Screen Overlay
32768*32768 40 Inch Multi Touch Frame Industrial IR Touch Screen Overlay
Specifications
Brand Name :
Master Touch
Model Number :
MST-IR-TF-40
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Name :
Master Touch IR Touch Frame
Touch Technology :
Infrared (IR)
Touch Points :
2, 4, 6, 10, 12, 16, 32, 40 (optional)
Minimum Touch Object :
5mm
Touch Durability :
Unlimited
Certification :
FC, CE, RoHS
Operating System :
Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Warranty :
2 years limited warranty on parts and labor
Light Transmission :
100% without glass
Power Supply :
Single USB Connection
Description

40 Inch Multi-touch Technology Industrial Control IR Touch Screen Overlay

1. Product Description

Master Touch 40 inch IR (Infrared) type touch frame panels do not overlay the display with an additional screen or screen sandwich. Instead, infrared frame use IR emitters and receivers to create an invisible grid of light beams across the screen. This ensures the best possible image quality. When an object interrupts the invisible infrared light beam, the sensors are able to locate the touch point. The X and Y coordinates are then sent to the controller.


2. Basic Specification

2.1 Touch Panel

Size 40''
Dimension 19mm width (with frame.without glass);
24''-5'' with 8.7mm thickness
Number of Touch Points 2-40(optional)
Minimum Touch Object 5mm
Touch Activation Force Unlimited
Touch Durability Unlimited
Resolution 32768*32768
Driver Free HID* compatible, up to 40 touch points
Linearity Deviation ±1mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Typical Response Time 3-10ms
Light Transmission 100% without glass
Operating Systems Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Protocols HID, TUIO, Flash
Re-development Provide free SDK, support C/C++, C#, Java etc.
2.2 Electrical Characteristics
Power Supply Single USB Connection
Low Power Consumption Operating ≤2W, Stand By ≤ 250mW
ESD Per EN61000-4-21995; Level 4
Contact Discharge 8kV,
Air Discharge 15kV
15kV on USB Connector pins

2.3 Environment Characteristics
Temperature Operating Temperature: -20°C~70°C
Storage Temperature: -40°C~85°C
Humidity Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH

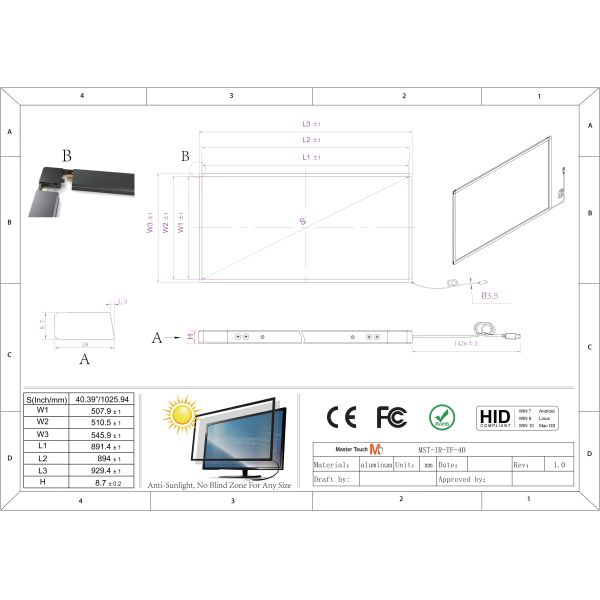

3. Drawing
32768*32768 40 Inch Multi Touch Frame Industrial IR Touch Screen Overlay
4. Features
High-end Multi-touch technology (truly support 2/4/6/10/12/16/32/40 touch points);
Strong ambient light immunity up to 150,000lux;
Fast response speed;
Remote control and diagnosis;
Easy Integration;
HID* plug & play driver free capability
5. Applications
32768*32768 40 Inch Multi Touch Frame Industrial IR Touch Screen Overlay
6. Details
32768*32768 40 Inch Multi Touch Frame Industrial IR Touch Screen Overlay
7. FAQ
32768*32768 40 Inch Multi Touch Frame Industrial IR Touch Screen Overlay
