58in Black Easy Integration Infrared Touch Frame Kiosk Touchscreen Panel Overlay
58in Black Easy Integration Infrared Touch Frame Kiosk Touchscreen Panel Overlay
Specifications
Brand Name :
Master Touch
Model Number :
MST-IR-TF-58
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Name :
Master Touch IR Touch Frame
Touch Technology :
Infrared (IR)
Touch Points :
2, 4, 6, 10, 12, 16, 32, 40 (optional)
Minimum Touch Object :
5mm
Touch Durability :
Unlimited
Certification :
FC, CE, RoHS
Operating System :
Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Warranty :
2 years limited warranty on parts and labor
Light Transmission :
100% without glass
Power Supply :
Single USB Connection
Description

58 Inch Black Easy Integration Infrared Touch Frame Kiosk Application

1. Product Description

Master Touch IR (Infrared) type touch frame panels do not overlay the display with an additional screen or screen sandwich. Instead, infrared frames use IR emitters and receivers to create an invisible grid of light beams across the screen. This ensures the best possible image quality. When an object interrupts the invisible infrared light beam, the sensors are able to locate the touch point. The X and Y coordinates are then sent to the controller.


2. Basic Specification


2.1 Touch Panel

Size 58''
Dimension 19mm width (with frame.without glass);
24-52” with 8.7mm thickness, 55”-110” with 9.5mm thickess
Number of Touch Points 2, 4, 6, 10, 12, 16, 32, 40(optional)
Minimum Touch Object 5mm
Touch Activation Force No minimum touch pressure required
Touch Durability Unlimited
Resolution 32768*32768
Driver Free HID* compatible, up to 40 touch points
Linearity Deviation ±1mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Typical Response Time 3-10ms
Light Transmission 100% without glass
Operating Systems Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Protocols HID, TUIO, Flash
Re-development Provide free SDK, support C/C++, C#, Java etc.
Warranty 2 years limited warranty on parts and labor
2.2 Electrical Characteristics
Power Supply Single USB Connection
Low Power Consumption Operating ≤2W, Stand By ≤ 250mW
ESD Per EN61000-4-21995; Level 4
Contact Discharge 8kV,
Air Discharge 15kV
15kV on USB Connector pins
2.3 Environment Characteristics
Temperature Operating Temperature: -20°C~70°C
Storage Temperature: -40°C~85°C
Humidity Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification FC, CE, RoHS

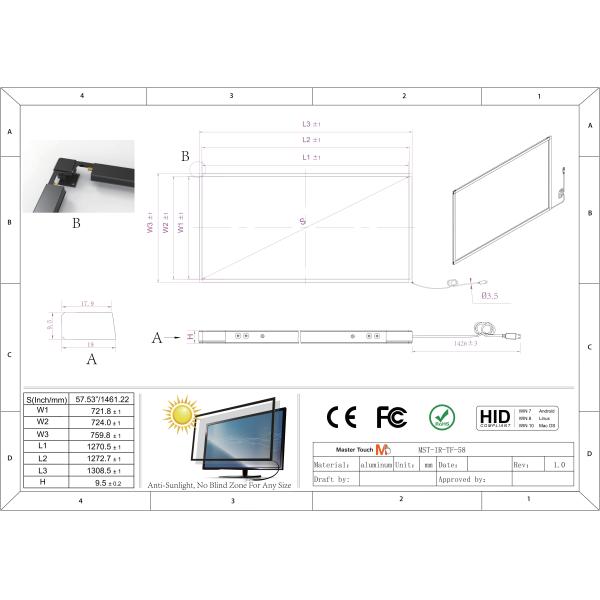

3. Drawing
58in Black Easy Integration Infrared Touch Frame Kiosk Touchscreen Panel Overlay
4. Advantages
  • Economical option – compared to other touch screens, the cost of IR touch screens is relatively cheap in large size.
  • Better display – without other substance between the LCD and overlay, IR touch screens offer the best light transmission, so they can render more vivid images without color and brightness loss.
  • Better writing experience – its overlay is often a piece of tempered glass, it is smooth to write on it.
  • Short response time – commonly less than 10ms, IR touch screens localized touch events by detecting light interruption, so they are accurate and quick to respond with actions.
5. Applications
58in Black Easy Integration Infrared Touch Frame Kiosk Touchscreen Panel Overlay
6. Details
58in Black Easy Integration Infrared Touch Frame Kiosk Touchscreen Panel Overlay
7. FAQ
58in Black Easy Integration Infrared Touch Frame Kiosk Touchscreen Panel Overlay
