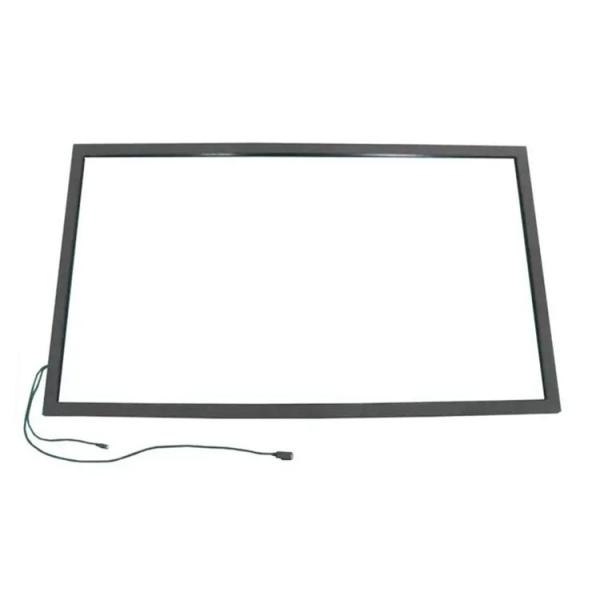

82 Inch No Adhesive Infrared Touch Frame Flash Protocols Multi Touch Overlay Kit
82 Inch No Adhesive Infrared Touch Frame Flash Protocols Multi Touch Overlay Kit
Specifications
Brand Name :
Master Touch
Model Number :
MST-IR-TF-82
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Name :
Master Touch IR Touch Frame
Touch Technology :
Infrared (IR)
Touch Points :
2, 4, 6, 10, 12, 16, 32, 40 (optional)
Minimum Touch Object :
5mm
Touch Durability :
Unlimited
Certification :
FC, CE, RoHS
Operating System :
Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Warranty :
2 years limited warranty on parts and labor
Light Transmission :
100% without glass
Power Supply :
Single USB Connection
Description

Multi-touch Technology 82 Inch No Adhesive Infrared Frame Splicing Touch Screen

1. Product Description

With the continuous development of touch technology, more and more industries begin to use large-scale infrared touch frame screen for display. The market demand also changes from single picture display to super large-scale, face to face interaction.

Now, in the application of touch technology in large-scale splicing screen, only infrared touch technology is fast in response. And MST large-size IR touch frame can be used on the surface of splicing screen. It is also superior to other touch technologies in sensitivity and touch force, and the product has the advantages of affordable cost, mature technology and stable product performance. At last, it is simple and convenient after-sales maintenance.

2. Basic Specification

2.1 Touch Panel

Size 82''
Dimension 19mm width (with frame.without glass);
24''-5'' with 8.7mm thickness
Number of Touch Points 2-40(optional)
Minimum Touch Object 5mm
Touch Activation Force Unlimited
Touch Durability Unlimited
Resolution 32768*32768
Driver Free HID* compatible, up to 40 touch points
Linearity Deviation ±1mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Typical Response Time 3-10ms
Light Transmission 100% without glass
Operating Systems Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Protocols HID, TUIO, Flash
Re-development Provide free SDK, support C/C++, C#, Java etc.
2.2 Electrical Characteristics
Power Supply Single USB Connection
Low Power Consumption Operating ≤2W, Stand By ≤ 250mW
ESD Per EN61000-4-21995; Level 4
Contact Discharge 8kV,
Air Discharge 15kV
15kV on USB Connector pins

2.3 Environment Characteristics
Temperature Operating Temperature: -20°C~70°C
Storage Temperature: -40°C~85°C
Humidity Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH

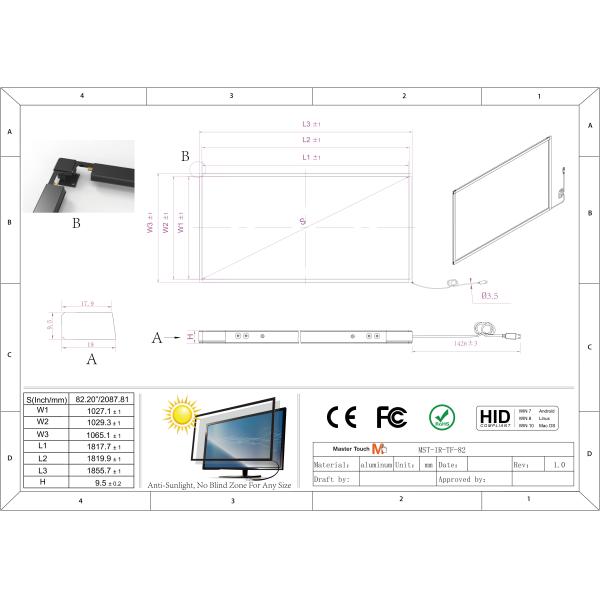

3. Drawing
82 Inch No Adhesive Infrared Touch Frame Flash Protocols Multi Touch Overlay Kit
4. Features
High-end Multi-touch technology (truly support 2/4/6/10/12/16/32/40 touch points);
Strong ambient light immunity up to 150,000lux;
Fast response speed;
Remote control and diagnosis;
Easy Integration;
HID* plug & play driver free capability
5. Applications
82 Inch No Adhesive Infrared Touch Frame Flash Protocols Multi Touch Overlay Kit

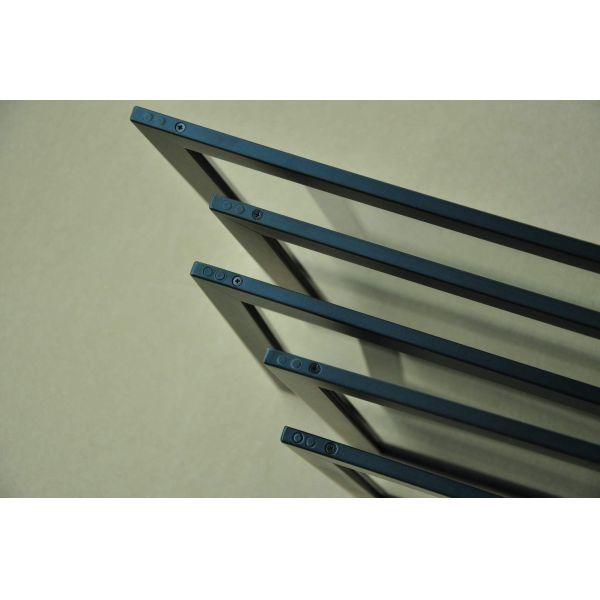

6. Details
82 Inch No Adhesive Infrared Touch Frame Flash Protocols Multi Touch Overlay Kit
7. FAQ
82 Inch No Adhesive Infrared Touch Frame Flash Protocols Multi Touch Overlay Kit
