Master Touch 5 Inch Hard Wear Glass ITO Android System Touch Screen Panel

1. Product Description

Master Touch 5 inch GG touch screen panel can be used in POS, coffee machine, screen display of appliance, smartphone, tablet, etc. MST G + G Capacitive Touch Panel is made of a surface tempered glass and a ensor glass with Pcap technology. There are two types of G+G structures: SITO and DITO. Master Touch G+G structure touch screen adopts DITO (Dual ITO) technology. From top to bottom is Cover glass, OCA, ITO1 and ITO2, and sensor glass.

Deep customization of the product includes structural, surface treatment such as AG AR AF AB and other special effects are supported.

2. Basic Features

4. Optical Characteristics

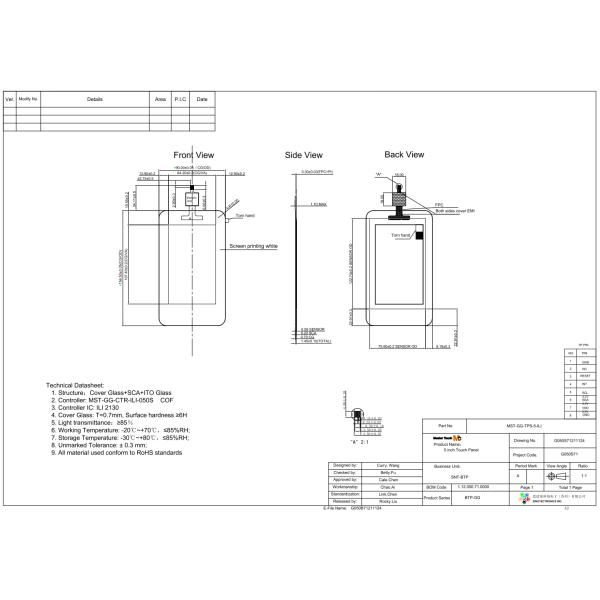

6. Drawing

7. Details

8. Cosmetic Inspection

The following standard only applies to the visual areas. If the TP function is good, the non-visual appearance may negotiate to relax the standard. W=Width L=length D=Diameter GT=Glass thickness. If soft cloth which dips in alcohol can wipe besmirch, it does not apply to this appearance standards.

Inspection methods and conditions:

1)Inspection environment: Temperature:20-22 ℃; Humidity: 65 + 10% RH;

2)Inspector qualifications: The appearance of product must be inspect by a good eyesight inspector.

3) Inspection methods: The distance between inspector and product should be 30±2cm and putting a lamp 12 to 20 watts of cold white fluorescent lamp in the observation station of product.

Pay attention to the following matters when inspection:

A.Inspectors must wear a fingerstall.

B.Put the product in front of inspector, hands hold the edge of products carefully and can’t make it bended.

C.Inspectors shouldn’t stare at a certain point but continue covered watching.

D.According to the following standards judge whether products conform to the requirement. If found other defect, from perspective of appearance consider whether customers accept this defect in end product.

9. FAQ
