345.2x194.6mm 15.6'' Interactive Touch Screen Panel With ILI2510 Controller
345.2x194.6mm 15.6'' Interactive Touch Screen Panel With ILI2510 Controller
Specifications
Brand Name :
Master Touch
Model Number :
MST-GG-TPB-15.6-ILI
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Touch Point :
10
Viewing Area :
345.2(L)×194.6(W)mm
Touch Technology :
Pcap (projected capacitive)
Controller :
ILI2510
Channel :
TX: 40 RX: 52
Cover Glass :
3mm
Cover lens O.D :
383.2(L)×232.6(W)mm
Communication :
USB
Description

Master Touch 15.6 Inch Interactive Touch Screen Panel Passing Reliability Test

1. Product Description

MST G+G Pcap (projected capacitive) touch panel, via a process of sputtering an ITO pattern on a glass substrate to make a G-sensor, then laminate 2 layers of glass together, perceive touch accurately via capacitance coupling.

Capacitive touch screen has following outstanding features:

  • Response speed fast, smooth touch
  • Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
  • Any point can withstand more than 50 million times touch
  • Operating systems strong compatibility
  • Intelligent automatic calibration, use forinternal / external variety of environment
  • Long life, low maintenance costs

2. Advantages of G+G Structure

(1) High transmittance,>85%.

(2) Hard and anti-wear surface.The hardness is 6H.

(3) Excellent corrosion resistance.

(4) Sensitive touch and stable performance.

3. Basic Features

Item Feature Remarks
Controller ILI2510 -
Channel TX: 40 RX: 52 -
Power 5V USB: 4.7V ~ 6.0V, Typical:5V
Communication USB USB: 2.0 Full Speed
Number of Touch point 10 -
O.S. Windows/ Android/ Linux plug and play
Power Consumption

1.Active Mode: Max.120mA @ USB Input 5V

2.Idle Mode: 90mA @ USB Input 5V

3.Sleep Mode: less than 1mA @ USB Input 5V
4. Mechanical Characteristics
Item Specification Unit
Viewing Area

345.2(L)×194.6(W)

 mm
Cover Lense O.D.

383.2(L)×232.6(W)

5. Optical Characteristics

Item Specification
Transparency Viewing Area ≧85%
6. Sensor Specification
Item Specification Unit
Stacked structure Cover 3.0 mm
LOCA 0.2 mm
ITO 0.7

mm
Sensor Glass
ITO
Sensor Dimension OD Size X 358 mm
Y

210

 mm

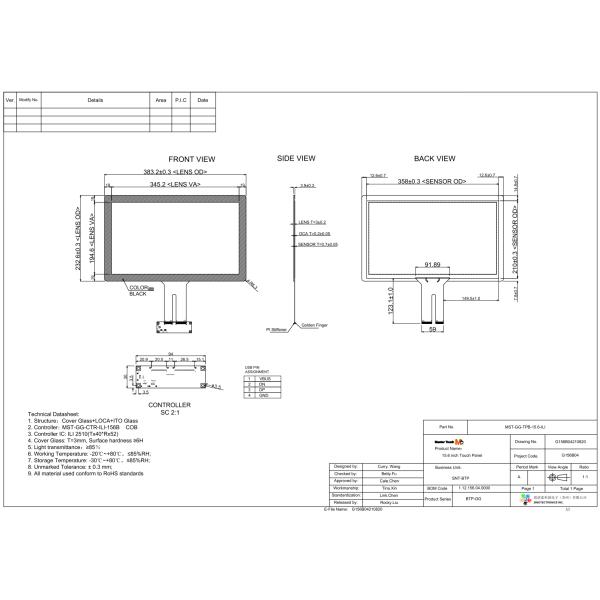

7. Drawing

345.2x194.6mm 15.6'' Interactive Touch Screen Panel With ILI2510 Controller

8. Details

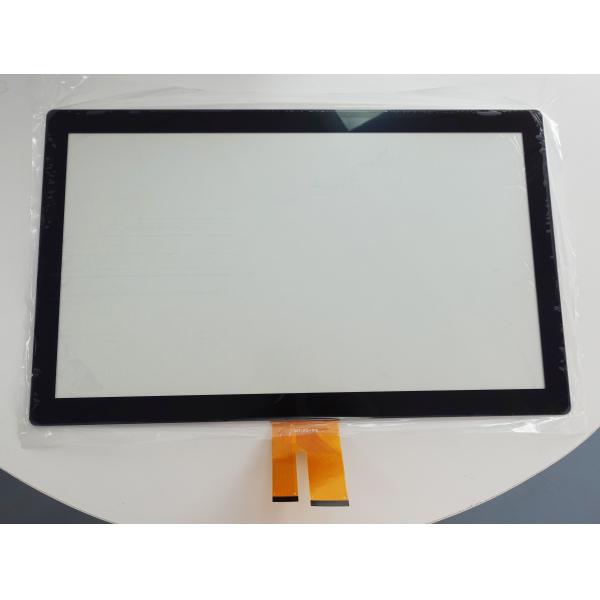

345.2x194.6mm 15.6'' Interactive Touch Screen Panel With ILI2510 Controller

9. Reliablility Test

Reliability test report
Objects
 □Raw material □New production process □Abnormal item
□New product □Finished product □Sample
□Experiment procedure and method □Others
□Production line program
Purpose: to verify the applicability of the experimental product when being stored,transported and used under the extreme environmental conditions.

Experiment requirements:


①Before the experiment, make sure the functions of the product must be good,while the cosmetic may be good or non-good according to the purpose of the experiment.

②If it is necessary to do the experiment again,make sure all materials must be put in the same room for at least 2hrs and make sure that there is no water vapor on its surface.

③It is prohibited to open the door before we finish the whole experiment.

④The product is requested to be kept for more than 1 years,after the experiment.
No. Items Test condition Criterion
1 High temperature and humidity test 1. Temperature: 60℃
2. Humidity: 90%RH
3. Time: finished product 120H

Appearance test refer tostandard OK

Function detection OK
2 Temperature Switching impact test 1.High temperature
2.Low temperature
3. 30 times in cycle		 Appearance test refer tostandard OK
Function detection OK
3 Salt spray test 1.Concentration: 5% NaCl solution
2.Temperature: 35℃
3.Time: finished product 48H		 Appearance test refer tostandard OK
Function detection OK
4 High temperature storage test 1.Temperature: 80℃
2.Time: 120H		 Appearance test refer tostandard OK
Function detection OK
5 Low temperature storage test 1.Temperature: -30℃
2.Time: 120H		 Appearance test refer tostandard OK
Function detection OK
6 Red ink test 1. Room temperature
2. Time: 8H		 1. No ink infiltration
2. All functions are good
7 Hand sweat test 1. Sweat PH=4.7
2. Time: 48H		 Appearance test refer tostandard OK
Function detection OK
8 Static electricity test 1. Air discharge: 8KV
2. Contact discharge: 6KV
3.Times: 10 times for each point		 Appearance test refer tostandard OK
Function detection OK
