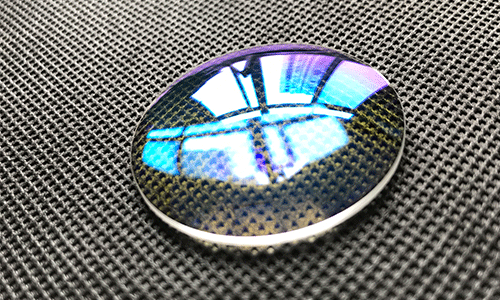

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range
VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range
VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range
VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range
VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range
VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range
Specifications
Brand Name :
Wuhan Siwer Optics
Model Number :
Double Convex
Place of Origin :
Wuhan,China
MOQ :
10 pieces
Price :
6-300USD/piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces/month
Delivery Time :
4-6 weeks
Packaging Details :
1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Material :
Optical glass,BK7,SF,etc.
Size tolerance :
+/-0.1mm
Chamfer :
0.2-0.5mm
Surface quality :
40/20
Surface flatness :
Lambda/4 in 25.4mm
Centration :
3 arc min
Standard coating :
AR@400-700nm
Size range :
4-300mm
Usage :
Optical system
Description

Double convex lens

Double-Convex Lenses are used in image relay applications, or for imaging objects at close conjugates. Double-Convex Lenses have positive focal lengths, along with two convex surfaces with equal radii. Aberrations will increase as the conjugate ratios increase. DCX Lenses are used in a range of industries or applications.

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range

Optical AR Coatings

a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index＝1.5) is about 4%.

Click on the link to see how to calculate reflectivity

b) AR/AR@400-700nm,Tavg>99.4%

c) AR/AR@450-650nm,Tavg>99.6%

d) AR/AR@400-1000nm,Tavg>98.5%

e) We can also customize high damage threshold antireflective coatings

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range

Production Line

VIS 0 Degree Coated DCX Double Convex Lens With 4-300mm Size Range

Optical Properties of Optical lens

Material Optical glass
AR Coating Range 400-700nm or customized
Reflectance over
AR Coating Range @ 0° AOI

Ravg<0.5%
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)		 λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)		 1.5λ at 633nm
Surface Irregularity
(Peak to Valley)		 λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm
