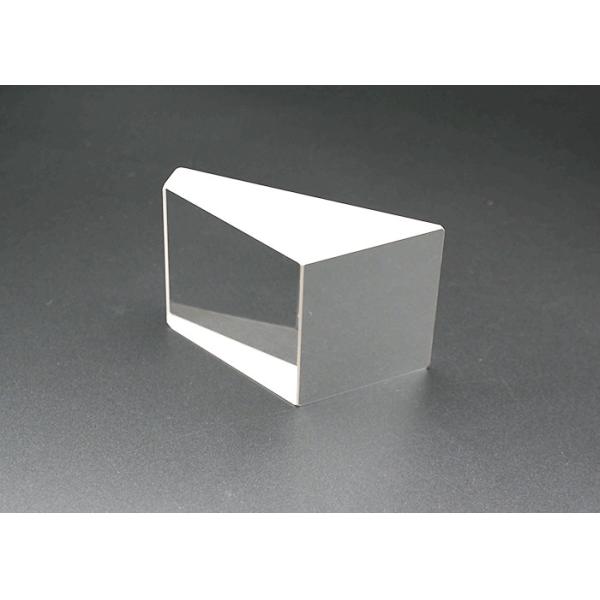

N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
Specifications
Brand Name :
Wuhan Siwer Optics
Model Number :
Half Penta Prism
Place of Origin :
Wuhan,China
MOQ :
20 pieces
Price :
10-40 USD/piece
Payment Terms :
T/T, Western Union
Supply Ability :
1000 pieces/month
Delivery Time :
4-6weeks
Packaging Details :
1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler
Material :
N-BK7 or H-K9L
Size tolerance :
+/-0.1mm
Chamfer :
0.2-0.5mm
Surface quality :
60/40
Surface flatness :
Lambda/2 in 25.4mm
Angle tolerance :
15 arc min
Standard coating :
Customized
Size range :
5-150mm
Description

N-BK7 Aluminized Half Penta Prism

A Schmidt–Pechan prism is a type of optical prism used to rotate an image by 180°. These prisms are commonly used in binoculars as an image erecting system. The Schmidt–Pechan prism makes use of a roof prism section. A binocular using Schmidt–Pechan prisms can be constructed more compactly than one using Porro or Abbe–Koenig roof prisms.

N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument

Optical Properties of Half Penta Prism

Material Optical glass
Diameter Tolerance +0.0/-0.1 mm
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)		 λ/2 at 633nm
Surface Irregularity
(Peak to Valley)		 λ/4 at 633nm
Angle tolerance 1 arc min

Production Line

N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument

Related Prisms

N-BK7 Optical Glass Prism Aluminized Half Penta Prism For Optical Instrument
