VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength
VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength
VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength
VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength
Specifications
Brand Name :
Wuhan Siwer Optics
Place of Origin :
Wuhan,China
MOQ :
10 pieces
Price :
1.8-20USD/piece
Supply Ability :
5000 pieces/month
Delivery Time :
4-5 weeks
Packaging Details :
1.Tissue paper.plastic foam packaging film And hard carton box with quakeproof filler
Material :
Optical glass,BK7,SF,etc.
Type :
Plano concave
Diameter range :
4-300mm
Demension tolerance :
+/-0.1mm
Surface quality :
40/20
Surface accuracy :
Lambda/4 in 25.4mm
Centration :
3 arc min
Usage :
Optical system
Description

Optical Plano Concave Lens

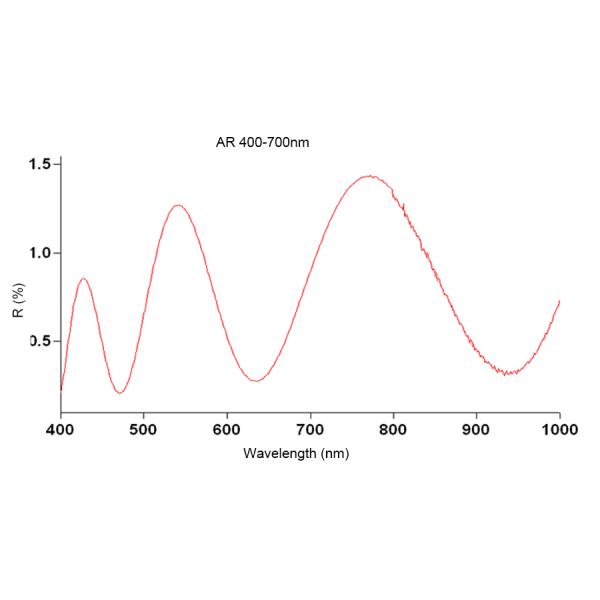

AR Coated to Provide <1.25% Reflectance per Surface for 400 - 1000nm
<0.25% Reflectance @ 880nm
Designed for 0° Angle of Incidence
Plano-Concave (PCV) lenses have one flat and one inward curved surface. PCV lenses have a negative focal length and are used for image reduction or to spread light.

VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength

Production Line

VIS-NIR 400-1000nm Plano Concave Lens AR Coated , 546nm Design Wavelength

Optical Properties of Plano Concave Lens

Material Optical glass
AR Coating Range 400-1000nm or customized
Diameter Tolerance +0.0/-0.1 mm
Thickness Tolerance ±0.1 mm
Focal Length Tolerance ±2%
Surface Quality 40/20 Scratch-Dig
Surface Flatness
(Plano Side)		 λ/2 at 633nm
Spherical Surface Powerc
(Convex Side)		 1.5λ at 633nm
Surface Irregularity
(Peak to Valley)		 λ/2 at 633nm
Centration <3 arcmin
Clear Aperture >Ø10.16 mm (Ø1/2" Lenses)
>Ø20.32 mm (Ø1" Lenses)
Design Wavelength 546nm
