300 tons vertical injection machine, injection volume 3000CC, table 700*700mm, screw diameter 45
300 tons vertical injection machine, injection volume 3000CC, table 700*700mm, screw diameter 45
300 tons vertical injection machine, injection volume 3000CC, table 700*700mm, screw diameter 45
300 tons vertical injection machine, injection volume 3000CC, table 700*700mm, screw diameter 45
Specifications
Brand Name :
TuoWei
Model Number :
TW
Place of Origin :
China
MOQ :
1stations
Price :
USD44000/stations
Payment Terms :
T/T
Supply Ability :
60Work days
Delivery Time :
60work days
Packaging Details :
simple packaging
Type :
TWL-300T
Clapping force（TON） :
300
Stroke（MM） :
500
Working Plate Size（MM） :
700*800
Dimeter of cyhnder（MM） :
450
Max plate spacie（MM） :
550
Min Mould Height（MM） :
60
Crane travel（MM） :
200
Volume injection（CC） :
3000
Injection pressure（Mpa） :
220
Screw diametre（MM） :
45
Nozzle aperture（MM） :
6
System pressure （Mpa） :
20
Heater power（KW :
22
Total power（KW） :
40
Gross weight（KG） :
9300
Machine size（MM） :
3100*1800*4000
Description
Type TWL-300T
Clapping force(TON) 300
Stroke(MM) 500
Working Plate Size(MM) 700*800
Dimeter of cyhnder(MM) 450
Max plate spacie(MM) 550
Min Mould Height(MM) 60
Crane travel(MM) 200
Volume injection(CC) 3000
Injection pressure(Mpa) 220
Standard unit
Efficient specific pressure and flow hydraulic system
Upper machinery lifting mold
Lower in and out mold unit
Two-level demoulding device
Totally-enclosed safety shield and grating
Plasticizing and injection independent temperature control system
Hot plate heating zone control
Siemens controller
Optional device
Variable pump system
Cold runner device
3RT/4RT multilayer demoulding device
Middle mold in-and-out device
Claw device
Mold vacuum system
Quick mold change device
Remote control
Print function
May preset mold heating function
May increase injection volume

Machine characteristics
Stationary four cylinders balancing vertical injection structure, hyperstatic injection force.
Optimized shot feeding rod greatly reduces the rubber leakage and is convenient and fast for maintenance

and rubberreplacement.
“Innovative shot feeding tube constant temperature system plus ultrashort nozzle make very few remaining

materials and minimum pressure loss ”.
Specification under 500T adopts the international popular and advanced FIFO first-in first-out injection way .
Totally-enclosed safety shield and grating, higher equipment operation safety grade.
Hot plate heating zone control makes temperature more even.
Bigger table board design.
More automatic functions may be selected.

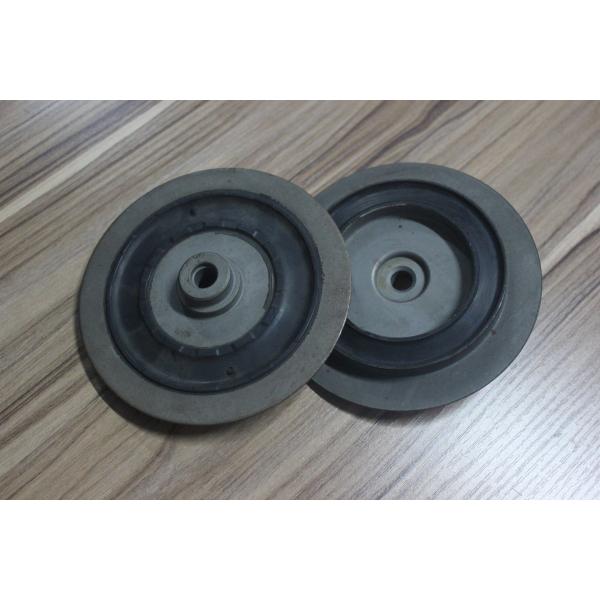

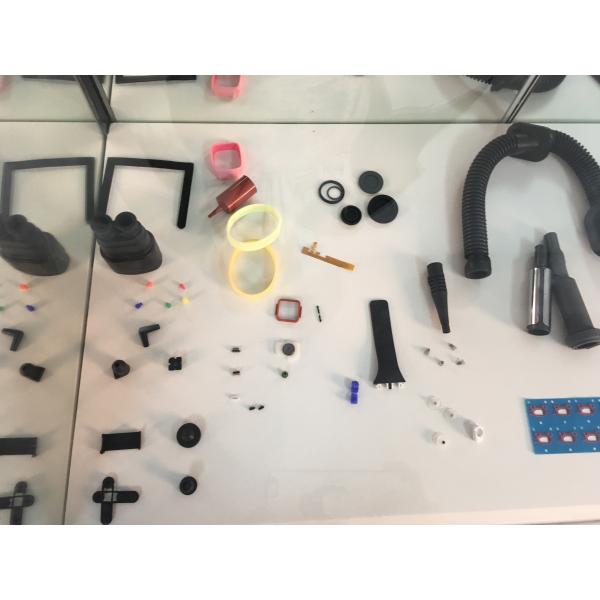

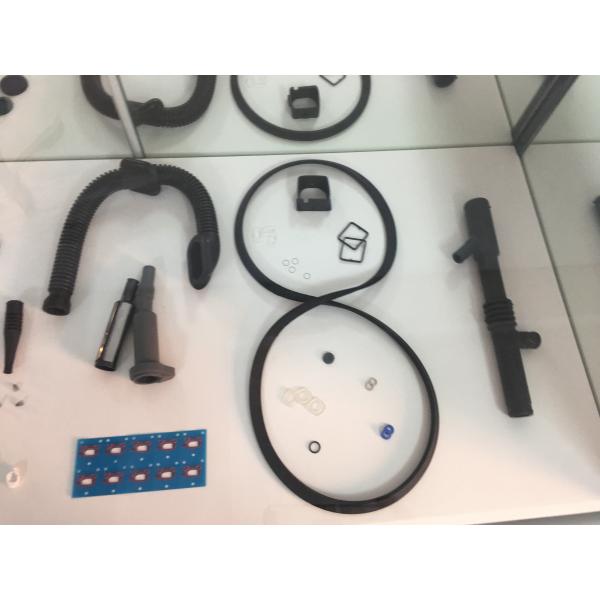

Applicable products:Various rubber products
