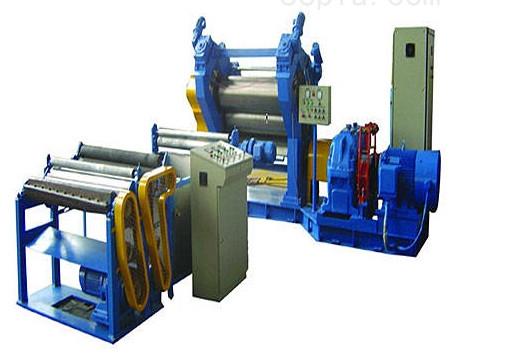

Automatic PVC Calender Machine PVC Semi-soft Transparent Sheet Calender Machine
Automatic PVC Calender Machine PVC Semi-soft Transparent Sheet Calender Machine
Specifications
Brand Name :
Flame
Model Number :
5 Roll Calender
Certification :
ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 set
Price :
USD 550,000/set
Payment Terms :
T/T
Supply Ability :
5 sets/150 days
Delivery Time :
150 work days
Packaging Details :
Simple packaging
Automatic Grade :
Automatic
Condition :
New
Voltage :
380V/3P/50HZ
Plastic Process :
PVC
Application :
Film
Color :
as you like
Dimension: :
Customizable
Description

PVC Calender Machinery PVC Semi-soft Transparent Sheet Machine

Extrusion Process of PVC Calender Machinery PVC Semi-soft Transparent Sheet Machine

Plastic resin are fed into the barrel of the extruder and conveyed by the screw, the heaters which are outside of the barrel of the extruder as well as the friction from the rotation of the screw melt the plastic pellets into a sheet mold and then placed on a three-roll calender, the produced sheet goes through the bottom and middle roll,wrapping around back of the middle roll and then back to the top roll or other methods as shown in sheet calender picture, these rolls are helpful to take the heat out of the sheet, after the sheet comes off the roll,it moves down the conveyor to the end of sheet line where the edge trimmer cuts the sheet to width as well as a sheet shear cutter to length.

Main Models of PVC Calender Machinery PVC Semi-soft Transparent Sheet Machine

Extruder SJSZ-51/105 SJSZ-65/132 SJSZ-80/156 SJSZ-92/188
Product Width 100-320mm 500-1000mm 500-2000mm 500-3000mm
Product Thickness 0.2-2mm 0.2-2mm 0.2-2mm 0.2-2mm
Main Power 18.5kw 37kw 55kw 90kw
Max Output 120kg/h 250kg/h 380kg/h 450kg/h
Automatic PVC Calender Machine PVC Semi-soft Transparent Sheet Calender Machine
