Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender
Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender
Specifications
Brand Name :
Flame
Model Number :
5 Roll Calender
Certification :
ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 set
Price :
USD 550,000/set
Payment Terms :
T/T
Supply Ability :
5 sets/150 days
Delivery Time :
150 work days
Packaging Details :
Simple packaging
Automatic Grade :
Automatic
Condition :
New
Voltage :
380V/3P/50HZ
Plastic Process :
PVC
Application :
Film
Color :
as you like
Dimension: :
Customizable
Description

4 roll calender PVC calender machine four roll rubber calender

1.Introduction of rubber calender

The machine is chiefly applied to put rubber on cord fabric, canvas or other fabrics; to rubberize fabrics; or to make rubber sheet.

The machine is driven by DC motor with a wide range of speed adjustment. Working linear speeds can be steplessly regulated within the fixed range for different applications. The rolls are equipped with lubrication failure alarm device, as well as nip display and speed display.

The rolls are made of chilled cast iron of vanadium and titanium alloy. The roll face is hard and anti-wear. For heating up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.

The rolls can be arranged in L, Γand I forms. The top roll has a camber that can eliminate bending impact on the roll in working process. Thus, it is possible to make products with same thickness along axial direction.

The transmission system adopts hard gear speed reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.

The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

2.Features of Rubber Calender

1. The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.

2. The rolls are arranged in I, and L forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction

3. The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.

4. The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

3.Main Technical Parameters of Two Roll Rubber Calender

XY-2-230 XY-2-250 XY-2-300 XY-2-360 XY-2-400 XY-2-450
Roll diameter (mm)

230

250

300

360

400

450
Working length (mm)

635

720

800

1120

1200

1400
Friction ratio

1:1

1:1.17

1:1

1:1.17

1:1

1:1.25

1:1

1:1.33

1:1

1:1.38

1:1

1:1.32
Mid roller linear(m/min)

3-14.5

 3-14 5-24 7-20 88-23 8-23
Bearings form Rolling bearings Rolling bearings Rolling bearings Rolling bearings Rolling bearings

Rolling

Bears

Mini thickness of products

(mm)

0.2

0.2

0.2

0.2

0.2

0.2
Motor power(kw) 11 11 18.5 30 37 45

4.Main Technical Parameters of Three Roll Rubber Calender

Model

XY- 630

XY- 630

XY-630

XY- 1120A

XY-1120A

XY-1120A

 XY-1400 XY-1500 XY-1730 XY-2130 XY-2430
Roll dia mm 230 360 400 450 610 710 810
Roll working length mm 630 1120 1400 1500 1730 2130 2430
Roll ratio

1:1:1

1:1.42:1

1:1:1

0.733:1:1

0.733:1:0.733

1:1:1

1:1.383:1.383

1:1.383:1

1:1:1

1:1.5:1

1:1:1

1:1.4:1

 1:1:1

1:1:1

1:1.5:1
Middle-roll linear speed r/min 0.8-8 3-21.06 3-26.39 2.62-26.2 5.4-54 8-50 2-20
Adjusting nip range mm 0-7 0-10 0-10 0-6 0-20 0-20 0.5-25
Min.Calendering product thickness mm 0.2 0.2 0.2 0.2 0.15 0.15 0.5
Calendering product width kg 100-500 500- 1200 1400 1400 1900 2150
Motor power kW 7.5 45 55 75 132 185 220
Overall dimensions mm 3168 5550 6500 7420 7010 7650 9300
mm 890 1640 1500 2200 3950 4560 3150
mm 1830 2120 2440 2900 3730 4080 5200
About weight t ~2.6 ~11 ~22 ~26 ~52 ~67 ~94

5.Main Technical Parameters of Four Roll Rubber Calender

Model XY-3I 630 XY-3I 1120A
XY-3 1120A
XY-3l1120A		 XY-3I 1400 XY-3I 1200
XY-3I 1500		 XY-3I 1730 XY-3I 2130
Roll diameter (mm) 230 360 400 450 610 710
Roll working length (mm) 630 1120 1400 1200(1500) 1730 2130
Roll speed ratio 1:1:1
1:1.42:1		 1:1:1
0.733:1:1
0.733:1:0.733		 1:1:1
1:1.383:1.383
1:1.383:1		 1:1:1
1:1.5:1		 1:1:1
1:1.4:1		 1:1:1
1:1.48:1
Middle-roll linear speed (m/min) 7.97 7.0-21.06 8.8-26.39 8.36-25.08 5.4-54 8-50
Adjusting nip range (mm) 0-7 0-10 0-10 0-6 0-20 0-20
Min.Calendering product thickness (mm) 0.2 0.2 0.2 0.15 0.15 0.15
Calendering product width (mm) 100-500 500-920 1200 1100(1400) 1500 1900
Motor power (kw) 7.5 40/13.3 55/18.3 75/25 132 185
Overall dimensions (mm) 2570×740×1500 5550×1640×2120 6500×1500×2440 7120(7420)×2200×2900 7010×3950×3730 7650×4560×4080
Weight (kg) ∼27000 ∼52000 ∼67000

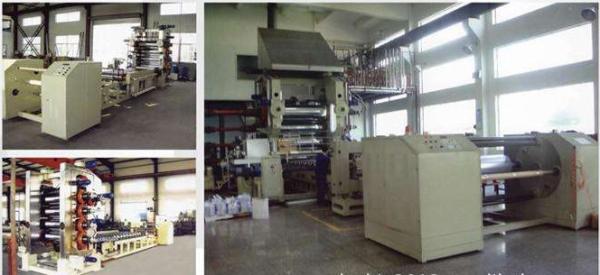

1.Double Screw Extruder:

Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender
2.Three roller calendaring machine

Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender
3.Roller cooling and drying device

Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender
4.double roller traction and edge-cutting machine

Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender Four Roll Calendering Machines , PVC Calender Machine 4 Roll Rubber Calender
