PVC Planetary Roller Extruder 38CrMoAIA / 9Cr18MoV For Plastic Card

1. Plastic Processed:PVC granules,PVC film,PVC sheet, PVC pipe, PVC card.

2. Planet roller extruder is composed of central shaft,planet shaft,rolling stuff cylinder,case,heating and cooling parts,nozzle, and so on…

3. the structure uses model system,and has good flexibility.Contacting area is five times previous extruders of single or two shafts and section shape is highly dispersed and uniform,so the extruder obtain high quality products.

4. Products mainly are used for manufacturing thermal sensitivity materials,hard and soft PVC,and also for ABS,TPO,TPU, and the mixture of filler polyalkene and bond.

5. the Characterizes of Planetary roller screw extruder:good plasticization,self-clean,high productility,long useful life, and so on.

6. Now achievements are made in the industry of powder dope.And chemical and food industries are increasing their uses.

Description:

1. Materials: 38CrMoAIA, 9Cr18MoV

2. Application:PVC

3. Depth of nitration case:0.5-0.8mm

4. Hardness of nitration: 950-1020HV

5. Fragility of nitration: Less than grade 1

6. Roughness of the surface:Ra 0.4um

7. Linearity of the screw:0.015mm

8. Chromium-plating layer thickness:0.03-0.08mm

9. The surface hard chromium plating hardness after nitrogenation:>=950HV

10. Guarantee: Common Nitrided: approx 2 years Bimetallic : much longer lifetime

Applications:

Mainly used in the production of sheet, card, film and other plastic products industry.

Configuration:

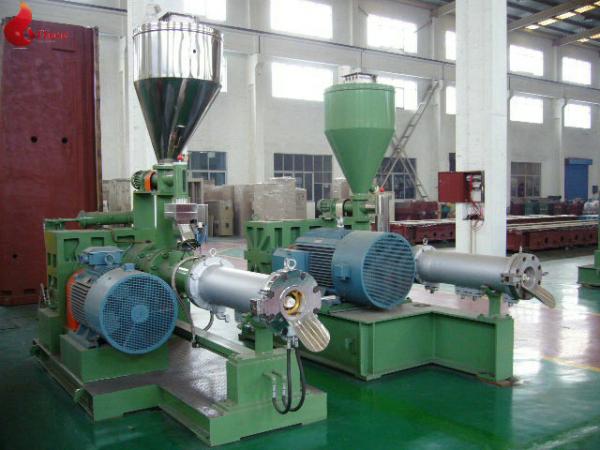

A. PRE-150 PLANETARY ROLLER EXTRUDER 1SET

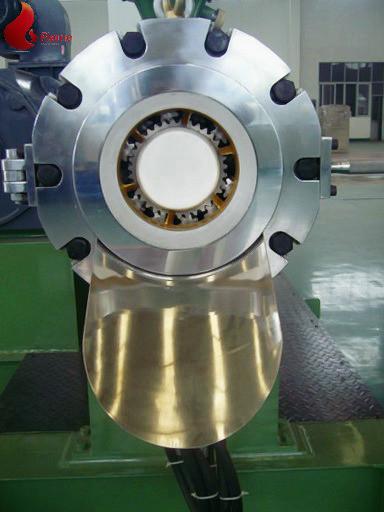

(1). Planetary roller section: main screw 1 pc; planetary roller 8 pcs, knife

plate 1 pc, gear tooth sleeve; And this section is jacket-designed, which

can get through by heating oil; The main screw is core-drilled, heated by

oil; And the head of machine is cooled down by water;

(2). Section of material feeding, jacket-designed, water cooling.

(3). Feeding motor power: 1.1 KW;

(4). Hard-toothed gear box, Chinese famous brand;

(5). Inverter motor, AC, 75 KW;

(6). Stainless steel hopper, capacity of 100 kg;

(7). Metal detector( brand of S + S) is equipped on the top of the hopper;

(8). Rotating speed of main screw: 0 – 60 rpm, speed is adjustable;

B. SJ-200 SINGLE SCREW EXTRUDER 1SET

(1). Barrel and screw material is 38CrMoAlA

surface is nitride treatment (HRC 68-72),

L/D: 6:1, rotating speed of the screw is 0 -75 rpm, adjustable speed;

Temperature control type: cast aluminum heater and fan cooling;

(2). Hard-toothed gear box, Chinese famous brand;

(3). AC inverter motor, 75 KW;

(4). Head of the extruder is equipped with pressure/temperature indicator

Competitive Advantage:

1) Good performance

2) Long usage life

3) Good production stability

4) Reasonable design

5) High precision mold

6) Adopts AC frequency conversion technology

7) Uses imported electric components

8) Product characteristics: a) Good foam b) Smooth surface c) Antibacterial d) Wearable e) Antistatic f) Insulate

9) Widely used for agriculture and industry

10) Large marketing potential

Warranty and After sales service

Six months guarantee electrical parts, mechanism for 12 months; While the machine is broken during the production, the seller must give response to the problem at once.
